Remove/Install Tweeter In Soft Top Compartment Cover - AR82.62-P-0014LWR
Model 217.4
with code 811 (High-End sound system)
| Remove/install | |||
| 1 | Completely open soft top | ||

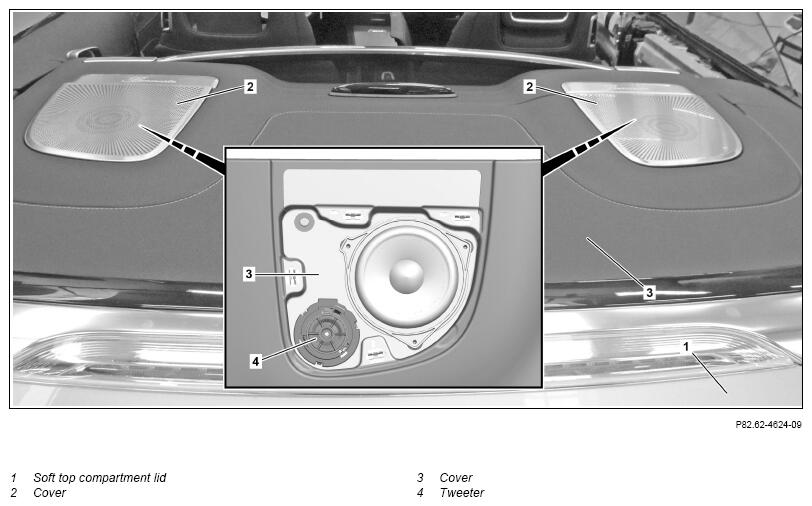

| 2 | Unclip corresponding cover (2) | Fig 1 | |
| 3 | Unclip tweeter (4) from trim (3) and remove | ||
| 4 | Disconnect electrical connector from tweeter (4) | ||
| 5 | Install in the reverse order |
