Remove/Install The Speakers In The Headliner - AR82.62-P-7876LC
Model 217.3
up to model year 2018
with code 811 (High-End sound system)

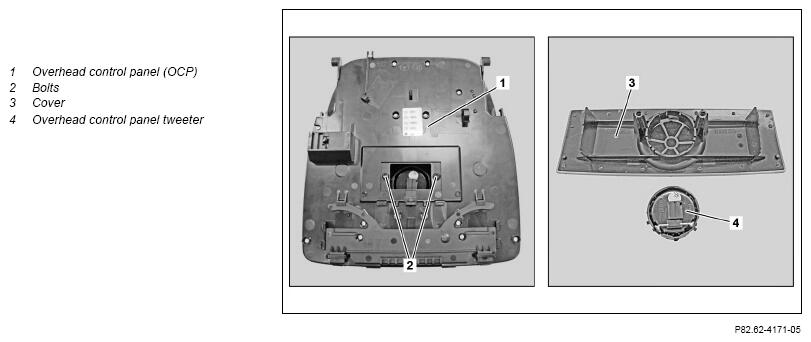

Shown in removed condition
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove overhead control panel (1) | AR82.20-P-1000LF | |
| 2 | Remove screws (2) | ||
| 3 | Remove cover (3) | ||
| 4 | Unclip the overhead control panel tweeter (4) from the cover (3) | ||
| 5 | Install in the reverse order |
