Remove/Install Telephone Antenna - AR82.62-P-0011LC

MODEL 217

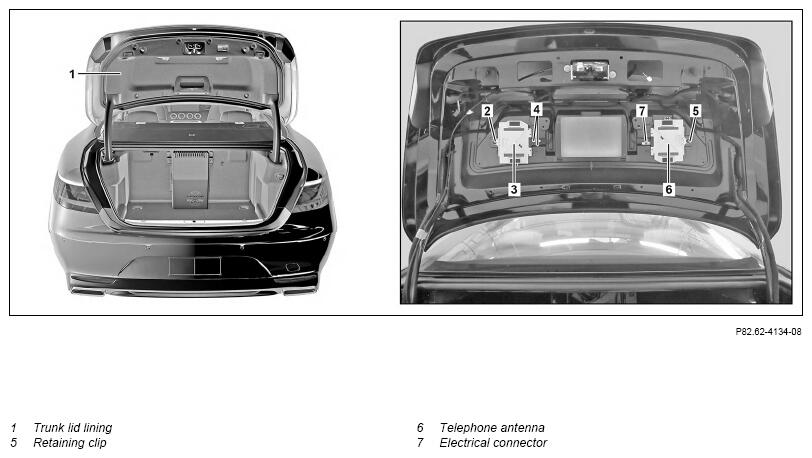

Fig 1: Telephone Antenna Component Location - Model 217

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove trunk lid paneling (1)		AR88.50-P-5000LC
2	Remove retaining clip (5)
3	Take out telephone antenna (6)
4	Disconnect electrical connector (7)
5	Remove telephone antenna (6)
6	Install in the reverse order
