Remove/Install Telematics Services Communications Module Control Unit - AR82.85-P-0020LC
Model 217
with code B54 (Live Traffic Information)

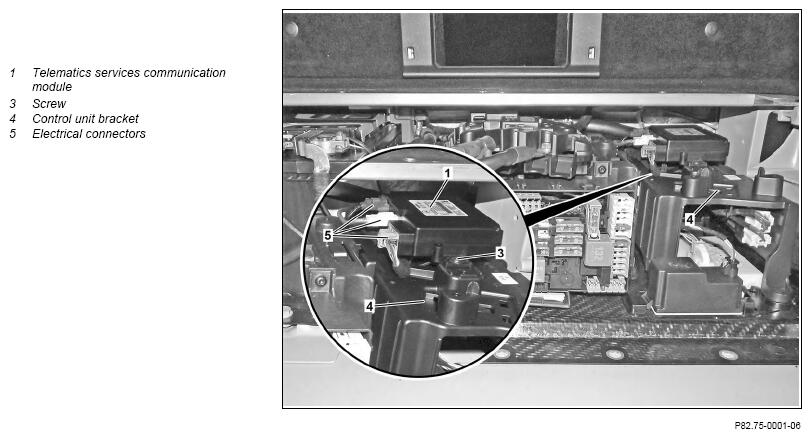

Shown on model 217.3
Shown on model 217.4
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of the telematics services communications module (1) using the diagnostic system | When replacing the telematics services communications module (1). | |
| AD00.00-P-2000-04B | |||
| 2.1 | Remove paneling in trunk at partition wall | Model 217.3 with code B54 (Live Traffic Information) |
AR68.30-P-4600LC |
| 2.2 | Remove crash plate | Model 217.4 with code B54 (Live Traffic Information) |
AR54.10-P-0005LCA |
| 3 | Unclip control unit bracket (2) and place to one side with electrical lines connected | Model 217.3 with code B54 (Live Traffic Information) |
|
| 4 | Remove screw/bolt (3) of telematics services communications module (1) | ||
| 5 | Remove telematics services communications module (1) at control unit bracket (4) | ||
| 6 | Disconnect electrical connectors (5) at the telematics services communications module (1) | ||
| 7 | Install in the reverse order |
