Remove/Install Speaker In Rear Shelf - AR82.62-P-7836LC
Model 217.3
with code 810 (Premium sound system)
Model 217.3
with code 811 (High-End sound system)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove front part of rear shelf | Model 217.3 with code 810 (Premium sound system) Model 217.3 with code 811 (High-End sound system) |
AR68.30-P-4581LC |

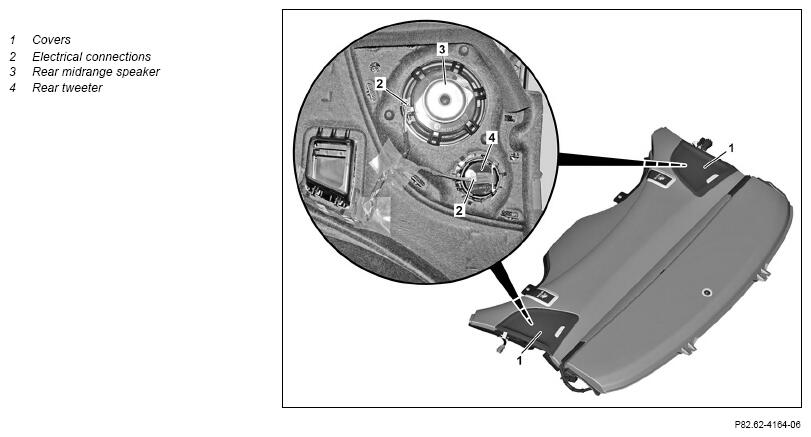

| 2 | Remove left or right covers (1) | ||
| 3 | Disconnect electrical connector (2) at rear left or right midrange speaker (3) or rear left or right tweeter (4) | ||
| 4 | Unclip rear left or right midrange speaker (3) or rear left or right tweeter (4) from above | When removing the rear left/right midrange speaker (3). | |
| 5 | Install in the reverse order |
