Remove/Install Remote Park-Pilot/Stationary Heater Antenna Splitter - AR82.70-P-0006LFM
Model 217.3, 222
as of model year 2018
with code 503 (Remote-controlled parking)
with code B24 (Remote control for Auxiliary heating)

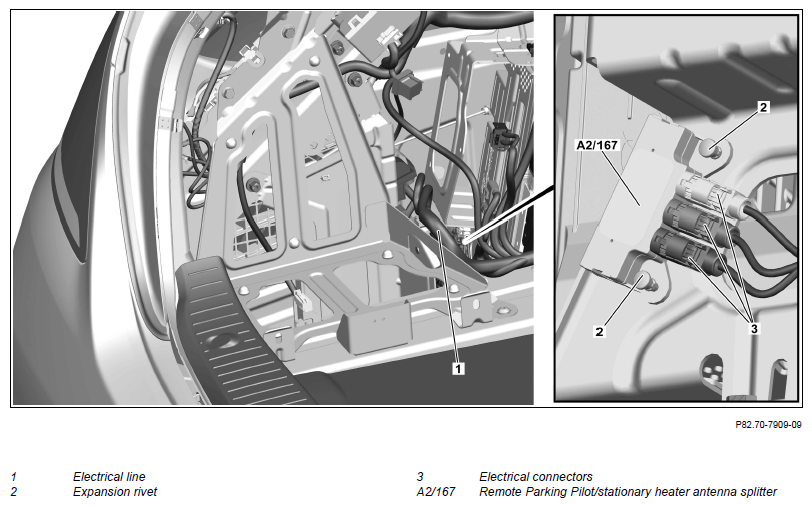

Fig 1: Remote Park-Pilot/Stationary Heater Antenna Splitter Component Location - Model 217.3 As Of Model Year 2018 With Code(s) 503 Or B24
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2.1 | Remove rear bass speaker | MODEL 222 with CODE 811 (Advanced sound system) | AR82.62-P-7839LF |
| 2.2 | Remove left cover from trunk | MODEL 217.3, 222 except CODE 811 (Advanced Sound-System) MODEL 217.3 |
AR68.30-P-4600LC |
| MODEL 222 | AR68.30-P-4600LF | ||
| 3 | Press electric line (1) to one side | ||
| 4 | Remove expansion rivets (2) | ||
| 5 | Remove Remote Parking Pilot/stationary heater antenna splitter (A2/167) | ||
| 6 | Release and disconnect electrical connectors (3) | ||
| 7 | Take out Remote Parking Pilot/stationary heater antenna splitter (A2/167) | ||
| 8 | Install in the reverse order |
