Remove/Install Radio, Central Locking And Keyless-Go Antenna Amplifier - AR82.62-P-8307LWR

Model 205.4, 217.4, 238.4

Shown on model 205.4

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove left A-pillar trim.	Model 217.4	AR68.30-P-4050LCA
		Model 205.4, 238.4	AR68.30-P-4050LW

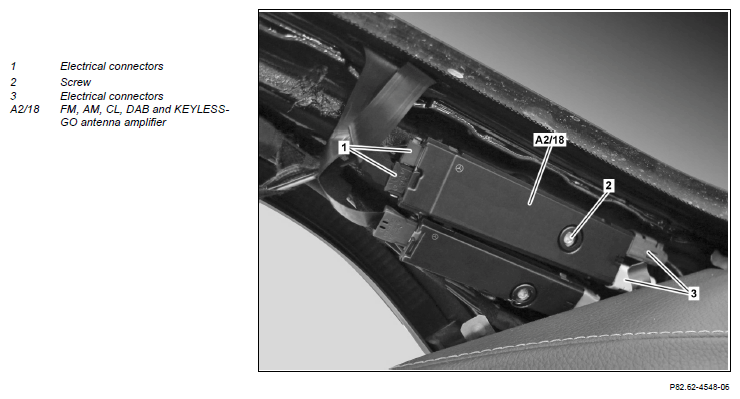

2	Disconnect electrical connectors (1).
3	Remove screw/bolt (2).	The screw/bolt (2) remains on the FM, AM CL [ZV], DAB and KEYLESS-GO antenna amplifier (A2/18).
4	Unclip FM, AM, CL [ZV], DAB and KEYLESS-GO antenna amplifier (A2/18) from A-pillar.
5	Disconnect electrical connectors (3) and remove FM, AM, CL [ZV], DAB and KEYLESS-GO antenna amplifier (A2/18).
6	Install in the reverse order
