Remove/Install GPS/GSM Antenna - AR82.85-P-0003LC

MODEL 217

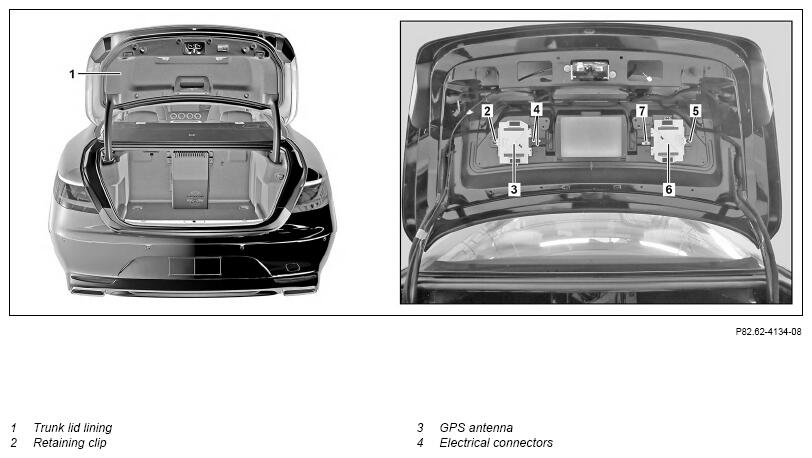

Fig 1: GPS/GSM Antenna Component Location - Model 217

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove trunk lid paneling (1)		AR88.50-P-5000LC
2	Remove retaining clip (2)
3	Take out GPS antenna (3)
4	Disconnect electrical connectors (4)
5	Remove GPS antenna (3)
6	Install in the reverse order
