Remove/Install FM 2, DAB And TV 1 Antenna Amplifier - AR82.62-P-8311LWR

Model 205.4

Model 217.4

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove right A-pillar trim.	Model 217.4	AR68.30-P-4050LCA
		Model 205.4	AR68.30-P-4050LW

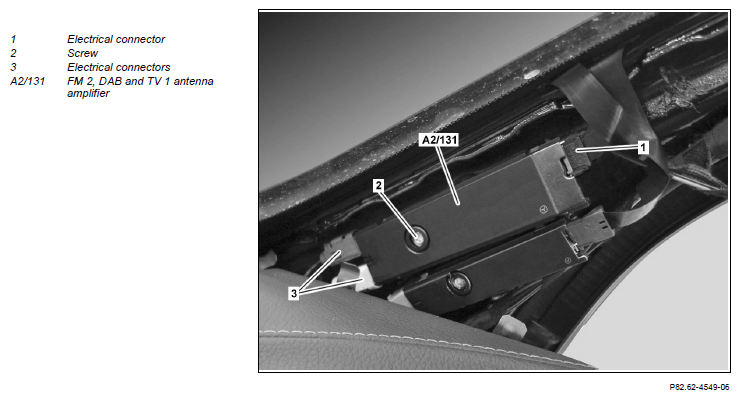

2	Disconnect electrical connector (1).
3	Remove screw/bolt (2).	The screw/bolt (2) remains on the FM 2, DAB and TV 1 antenna amplifier (A2/131).
4	Unclip FM 2, DAB and TV 1 antenna amplifier (A2/131) from A-pillar.
5	Disconnect electrical connectors (3) and remove FM 2, DAB and TV 1 antenna amplifier (A2/131).	The number of electrical connectors (3) may vary depending on the vehicle equipment involved.
6	Install in the reverse order
