Remove/Install Contact Plate For Cell Phone Holder (UPCI (UHI)) In The Armrest - AR82.70-P-8919LF
Model 217, 222
up to model year 2018
with code 386 (Comfort telephony)
Model 222
up to model year 2018
with code 856 (Telephone handset in rear armrest)
except code 224 (Individual rear seats)
Vehicles with CODE 386 (Comfort telephony)
Vehicles with code 856 (Business telephony in rear)
| Notice | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Open stowage compartment of front armrest or rear armrest | ||

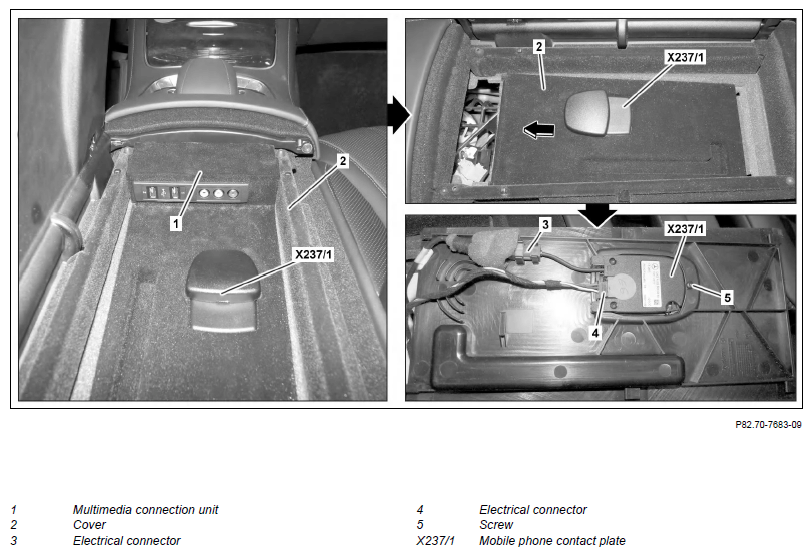

| 2 | Unclip multimedia connection unit (1) upwards, and place to side | Model 217, 222 up to model year 2018 with code 386 (Comfort telephony) |
|
| 3 | Move cover (2) in direction of arrow, remove and turn over | Model 217, 222 up to model year 2018 with code 386 (Comfort telephony) On removal of mobile phone contact plate (X237/1). |
|

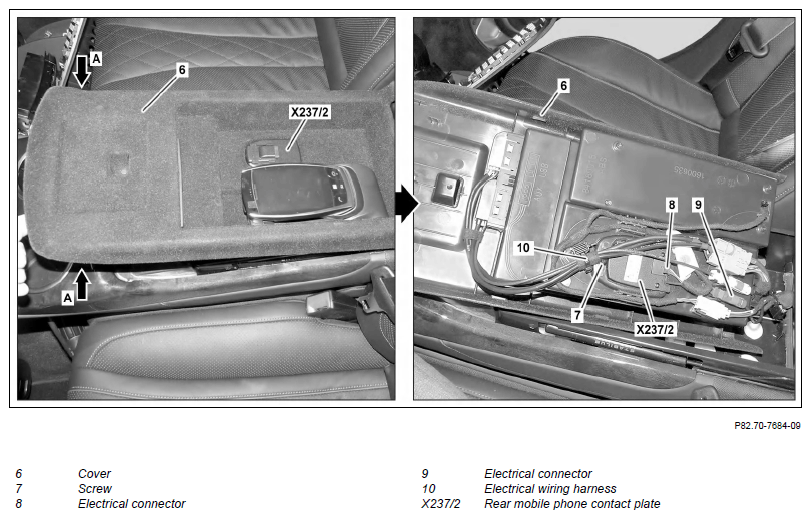

| 4 | Unclip cover (6) in area of arrows (A) with long wedge, remove and turn over | Model 222 up to model year 2018 with code 856 (Telephone handset in rear armrest) except code 224 (Individual rear seats) On removal of rear mobile phone contact plate (X237/2). |
Fig 1 |
| 5 | Remove electrical connector (3) and electrical connector (4) | On removal of mobile phone contact plate (X237/1). | |
| 6 | Remove electrical connection (8) and electrical connection (9) from guide, and disconnect | On removal of rear mobile phone contact plate (X237/2). | |
| 7 | Remove screw/bolt (5) and remove mobile phone contact plate (X237/1) | Model 217, 222 up to model year 2018 with code 386 (Comfort telephony) On removal of mobile phone contact plate (X237/1). |
|
| 8 | Remove screw/bolt (7) and remove rear mobile phone contact plate (X237/2) | Model 222 up to model year 2018 with code 856 (Telephone handset in rear armrest) except code 224 (Individual rear seats) On removal of rear mobile phone contact plate (X237/2). |
|
| 9 | Install in the reverse order |
