Retrofit DAB Tuner - AZ82.60-P-0031LC
Model 217.3
with code 197 (DVB-T2 conversion with ext. card reader/HD-TV Korea)
Only on vehicles in which code 537 (Digital radio (DAB)) has been deleted from VeDoc
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove | |||
| 1 | Remove front trunk lining and remove left side trim in trunk. | ||
| AR68.30-P-4600LC | |||
| 2 | Expose strapped-down claret violet connector socket. | The bordeaux violet connector socket was strapped down on the vehicle wiring harness in the area of the tuner unit. |
|
| Install | |||
| 3 | Convert plug housing for antenna lines. | AZ82.60-P-0031-05LF | |
| 4 | Convert plug housing on fiber-optic cable wiring harness. | AZ82.60-P-0001-06LF | |
| 5 | Expand MOST ring. | AZ82.60-P-0001-05LF | |
| 6 | Install antenna splitter for DAB tuner (90). | AZ82.60-P-0031-06LF | |
| Binder Duotec® Pilz in Pilz Klett - with adhesive 32 | *BR00.45-Z-1084-02A | ||
| 7 | Install electrical wiring harness for DAB tuner (90). | AZ82.60-P-0031-03LC | |
| 8 | Install antenna lines for DAB tuner (90). | AZ82.60-P-0031-04LC | |

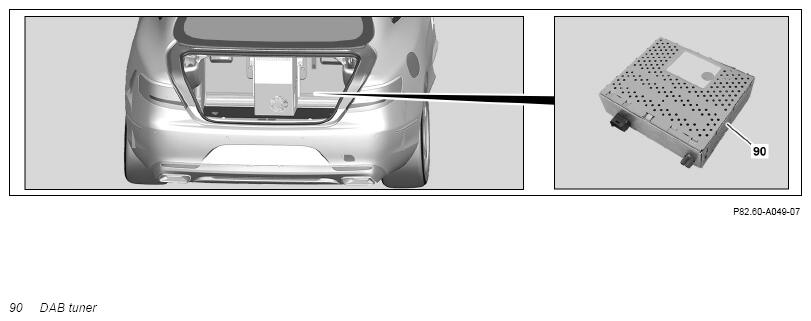

| 9 | Install DAB tuner (90). | AZ82.60-P-0031-00LC | |
| 10 | Install remaining parts. | ||
| Update Vehicle Documentation (VeDoc) | |||
| 11 | Enter special equipment into online vehicle data card. | ||
| 12 | Attach "TV tuner retrofitted as per AZ82.60-P-0031LC" note under field organizations texts for DG 82. | ||
| 13 | Connect diagnostic system and select vehicle using vehicle identification number (VIN). | ||
| AD00.00-P-2000-04B | |||
| 14 | Perform variant coding using the software calibration number (SCN). | Code head unit to match entered code 537 (Digital radio (DAB)). TV tuner |
|
| 15 | Disconnect diagnostic system. | ||
| AD00.00-P-2000-04B | |||
| Check | |||
| 16 | Perform function test. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1084-02A | Binder Duotec® Pilz in Pilz Klett - with adhesive 32 | Klettband Technik Schultz UG Schulstrasse 6 71111 Waldenbuch Germany Tel.: +49 (0) 7157 6754-83 or 82 Fax: +49 (0) 7157 6696815 info@klettband-technik.de http://www.klettband-technik.de |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 98 (see EPC) | DAB tuner parts kit | 1 |
