Retrofit CD Drive - AZ82.64-P-0002LCB

Model 217

with code 320 (Single CD drive preinstallation)

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove glove box

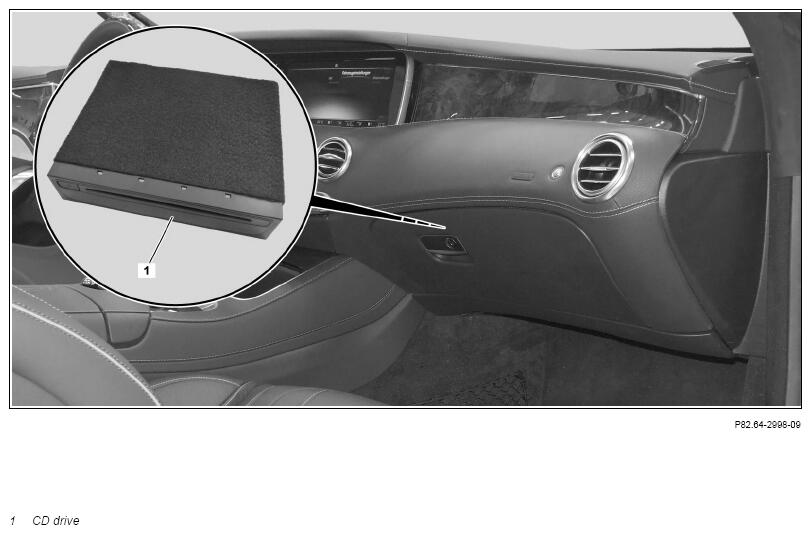

		Electrical wiring harness for CD drive (1) is fastened in front of glove compartment housing on instrument panel cross member.	AR68.10-P-1400LC
2	Remove glove compartment flap
			AR68.10-P-1403LC
3	Remove paneling below glove box
			AR68.10-P-1404LC
	Install
4	Fabricate drilling template for CD drive (1)	Model 217.3## /4## 1#	AZ82.64-P-0002-07LC
		Model 217.3## /4## 2#	AZ82.64-P-0002-07LCR
5	Fabricate adhesive film cutting template for CD drive (1)		AZ82.64-P-0002-05LF
6	Use cutting template to cut adhesive film to size
7	Prepare glove compartment for installation of CD drive (1)	Model 217.3## /4## 1#	AZ82.64-P-0002-08LC
		Model 217.3## /4## 2#	AZ82.64-P-0002-08LCR
8	Install glove compartment flap
			AR68.10-P-1403LC
9	Install trim below glove compartment housing
			AR68.10-P-1404LC
10	Release electrical wiring harness for CD drive (1) from instrument panel cross member
11	Retrofit CD drive (1) in glove box		AZ82.64-P-0002-03LC
12	Install glove box with CD drive (1)
			AR68.10-P-1400LC
	Update Vehicle Documentation (VeDoc)
13	Attach "CD drive retrofitted as per AZ82.64-P-0002LCB  note" under field organization texts	On design group 82.
	Check
14	Perform function test	See Owner's Manual.
