Retrofit CD Drive - AZ82.64-P-0002LC

Model 217.3/4

as of model year 2018

with code 531 (COMAND APS)

except code 320 (Single CD drive preinstallation)

except code 498 (Japanese version)

except code 830 (China version)

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove display module
			AR54.30-P-6023LF
2	Remove head unit
			AR82.85-P-1101LFM
3	Remove side cover of instrument panel on driver's side
4	Detach driver-side fuse and relay module (K40/6)
	Assignment of driver-side fuse and relay module	so that electrical fuse 204 (K40/6f204) is accessible.	GF54.15-P-1256-49LFM
5	Remove glove box
			AR68.10-P-1400LC
6	Remove glove compartment flap
			AR68.10-P-1403LC
7	Remove paneling below glove box
			AR68.10-P-1404LC
	Install
8	Fabricate drilling template for CD drive (1)	Model 217.### 1#	AZ82.64-P-0002-07LC
		Model 217.### 2#	AZ82.64-P-0002-07LCR
9	Fabricate adhesive film cutting template for CD drive (1)		AZ82.64-P-0002-05LF
10	Use cutting template to cut adhesive film to size
11	Prepare glove compartment for installation of CD drive (1)	Model 217.### 1#	AZ82.64-P-0002-08LC
		Model 217.### 2#	AZ82.64-P-0002-08LCR
12	Install glove compartment flap
			AR68.10-P-1403LC
13	Install trim below glove compartment housing
			AR68.10-P-1404LC
14	Retrofit wiring harness for CD drive (1)		AZ82.64-P-0002-01LC
Topical note	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
		Left transmission tunnel ground point	*BA00.19-P-1026-01J

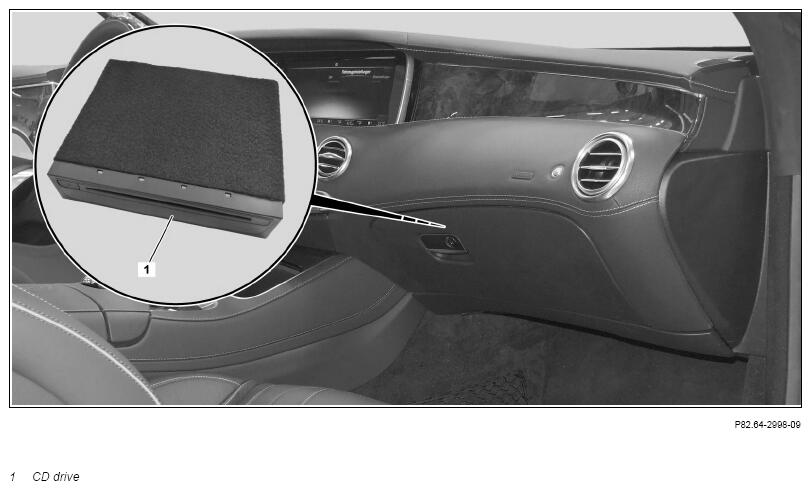

15	Retrofit CD drive (1) in glove box		AZ82.64-P-0002-03LC
16	Install glove box with CD drive (1)
			AR68.10-P-1400LC
17	Insert a fuse with fuse rating 5 A into the "f204" slot of the driver-side fuse and relay module (K40/6)
	Assignment of driver-side fuse and relay module		GF54.15-P-1256-49LFM
18	Install remaining parts
	Update Vehicle Documentation (VeDoc)
19	Enter special equipment in online vehicle data card	Code 320 (Single CD drive pre-installation)
20	Attach "CD drive retrofitted as per AZ82.64-P-0002LC note" under field organization texts	On design group 82 and design group 54.
21	Connect vehicle diagnosis system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04B
22	Carry out variant coding using software calibration number (SCN)	Head unit
23	Disconnect vehicle diagnosis system
			AD00.00-P-2000-04B
	Check
24	Perform function test	See Owner's Manual.
