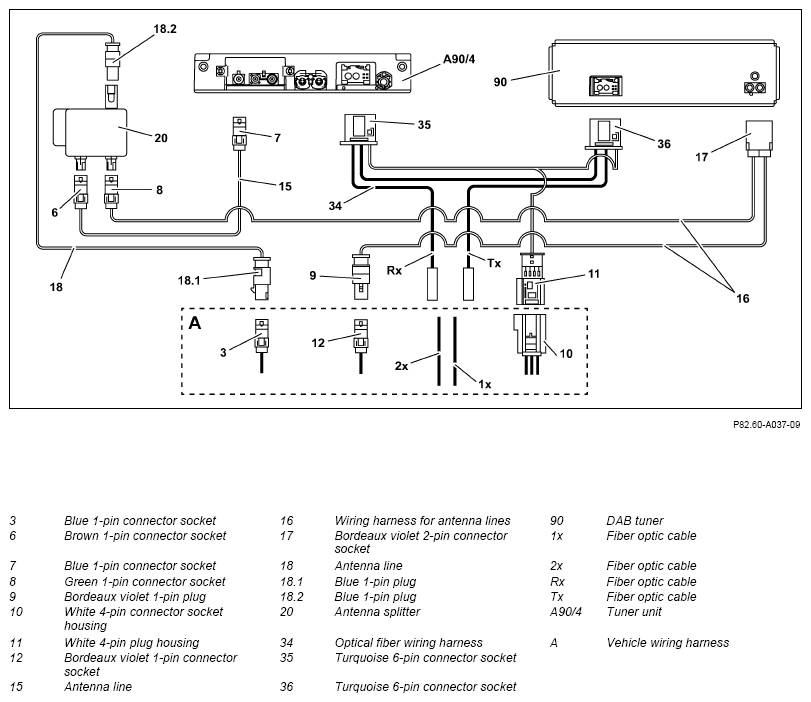

Install Electrical Wiring Harness For DAB Tuner - AZ82.60-P-0031-03LCA

Model 217.4

Courtesy of MERCEDES-BENZ USA

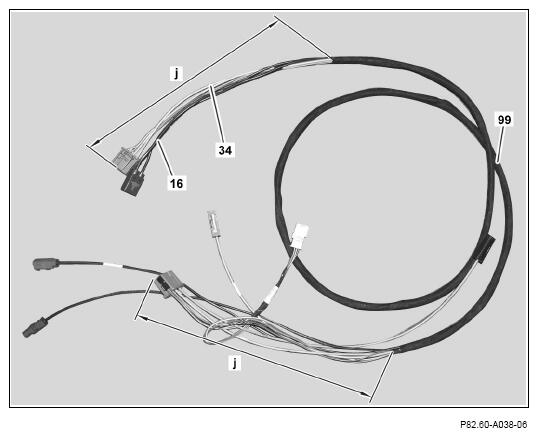

1. Wrap wiring harness for fiber-optic cables (34) and wiring harness for antenna lines (16) with fabric tape (99).

   Dimension:

   j =300 mm

   Courtesy of MERCEDES-BENZ USA

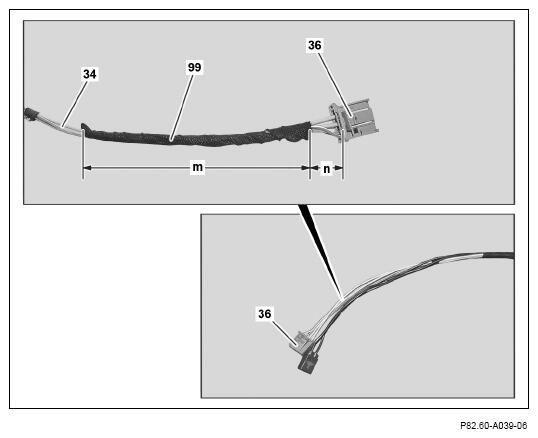

2. Wrap fiber-optic cables and electric lines of wiring harness for fiber-optic cables (34) with fabric tape (99).

   Dimensions:

   m = 150 mm

   n = 20 mm

   Courtesy of MERCEDES-BENZ USA

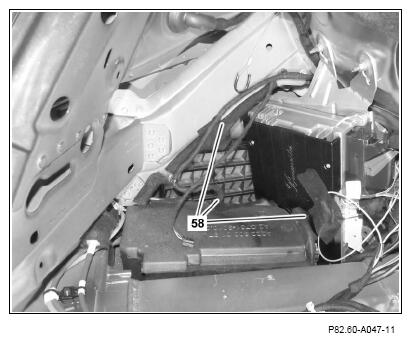

3. Stick felt strips (58) to sharp edges in routing area of wiring harnesses.

   Courtesy of MERCEDES-BENZ USA

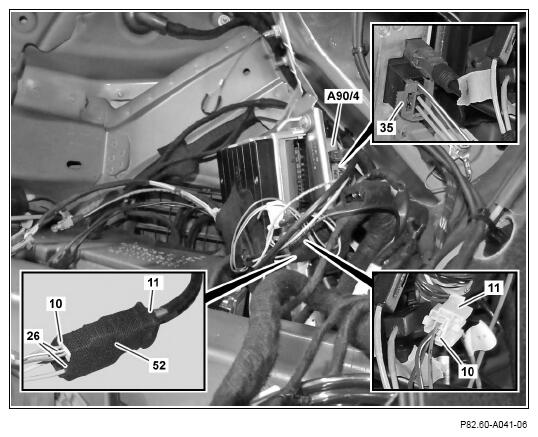

4. Connect white 4-pin connector socket housing (10) to white 4-pin plug housing (11).
5. Attach turquoise 6-pin connector socket (35) to tuner unit (A90/4).
6. Wrap fiber-optic cable adapter (26), white 4-pin connector socket housing (10) and white 4-pin plug housing (11) with fabric tape (52).

   Courtesy of MERCEDES-BENZ USA

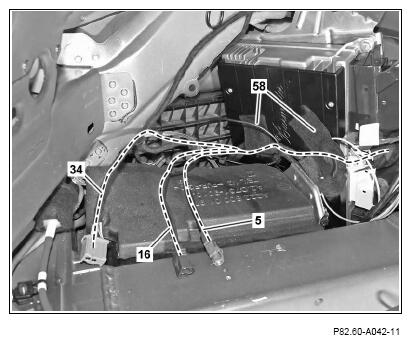

7. Route wiring harness for fiber-optic cables (34) with CA module card reader wiring harness (5) and wiring harness for antenna lines (16) to installation location of DAB tuner.

   Ensure extended length of approx. 300 mm of wiring harness for fiber-optic cables (34), CA module card reader wiring harness (5) and wiring harness for antenna lines (16), for connecting to the DAB tuner and the CA module card reader.

   Courtesy of MERCEDES-BENZ USA

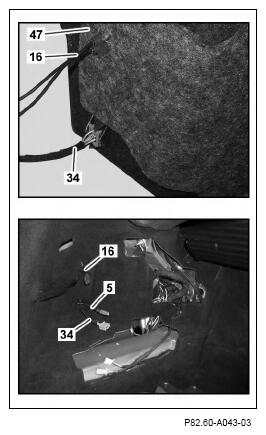

8. Guide wiring harness for fiber-optic cables (34) with CA module card reader wiring harness (5) through lower opening of side trunk lining (47).
9. Guide wiring harness for antenna lines (16) through upper opening of side trunk lining (47).
