Install DAB Tuner - AZ82.60-P-0031-00LC
Model 217.3
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK |

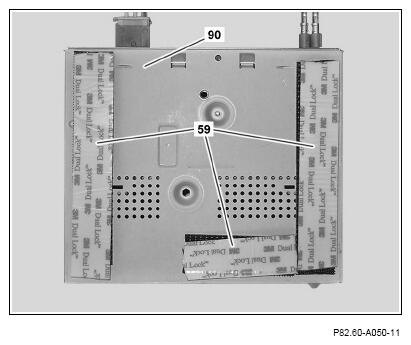

- Attach velcro strips (59) to DAB tuner (90).

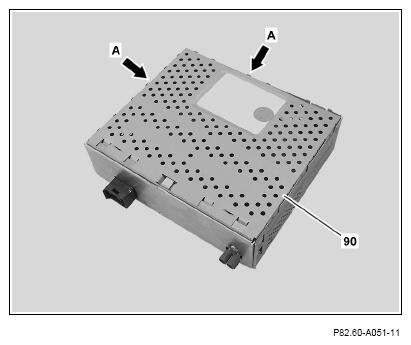

- Stick felt tape on edges (arrows A) on the DAB tuner (90).
Bond edges (arrows A) carefully.
Otherwise, the vehicle-side wiring harness may become damaged.

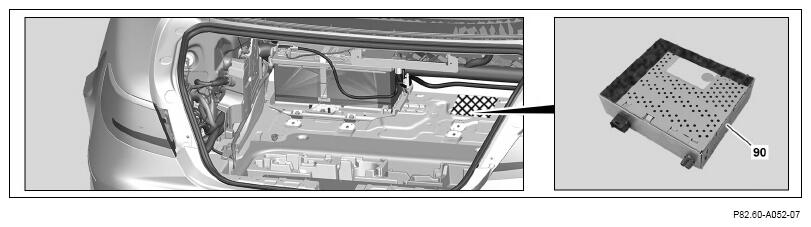

- Remove carrier foil from Velcro strips and stick DAB tuner (90) in shaded area onto trunk floor.

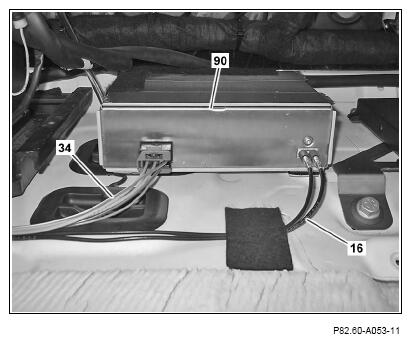

- Connect wiring harness for fiber-optic cables (34) and wiring harness for antenna lines (16) to DAB tuner (90).
