Install Antenna Splitter For DAB Tuner - AZ82.60-P-0031-06LCA
Model 217.4
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1084-02A | Binder Duotec® Pilz in Pilz Klett - with adhesive 32 | Klettband Technik Schultz UG Schulstrasse 6 71111 Waldenbuch Germany Tel.: +49 (0) 7157 6754-83 or 82 Fax: +49 (0) 7157 6696815 info@klettband-technik.de http://www.klettband-technik.de |

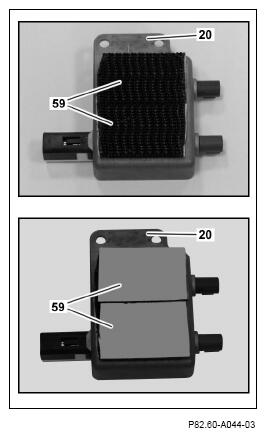

- Cut two Velcro strips (59) to a length of 45 mm.
- Remove carrier foils and glue Velcro strips (59) onto antenna splitter (20).
- Attach two further Velcro strips (59) onto existing Velcro strips (59).
- Remove carrier foils from Velcro strips.

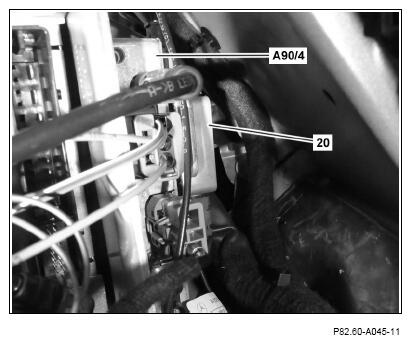

- Glue antenna splitter (20) centrally onto the tuner unit (A90/4).
The black connector socket of the antenna splitter (20) must point upwards.
