Fabricate Drilling Template For CD Drive - AZ82.64-P-0002-07LCR

Model 217.3##/4## 2#

Courtesy of MERCEDES-BENZ USA

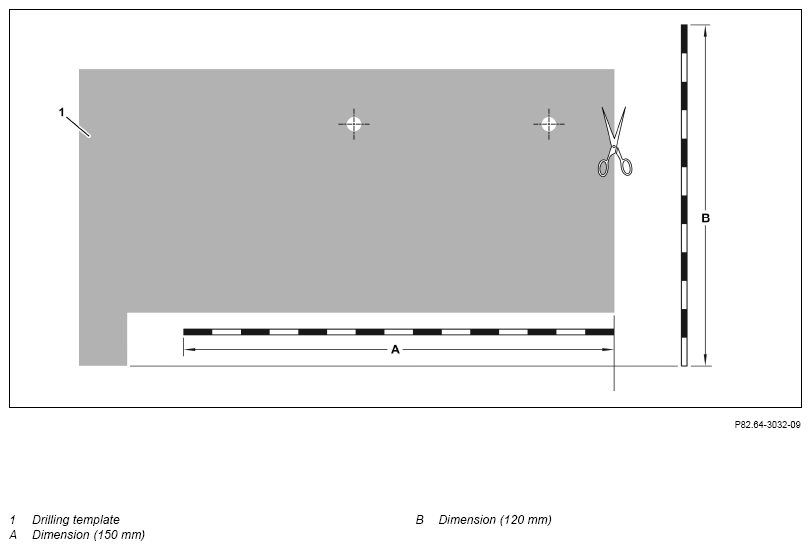

1. Print out drilling template (1).
2. Determine dimensions (A, B) of print-out.
3. Determine scaling factor.

   Divide dimension specified (A) by dimension determined (A).

   Divide dimension specified (B) by dimension determined (B).

4. Copy printed drilling template (1) to original size using the determined scaling factor.
5. Cut out drilling template (1).

   Courtesy of MERCEDES-BENZ USA

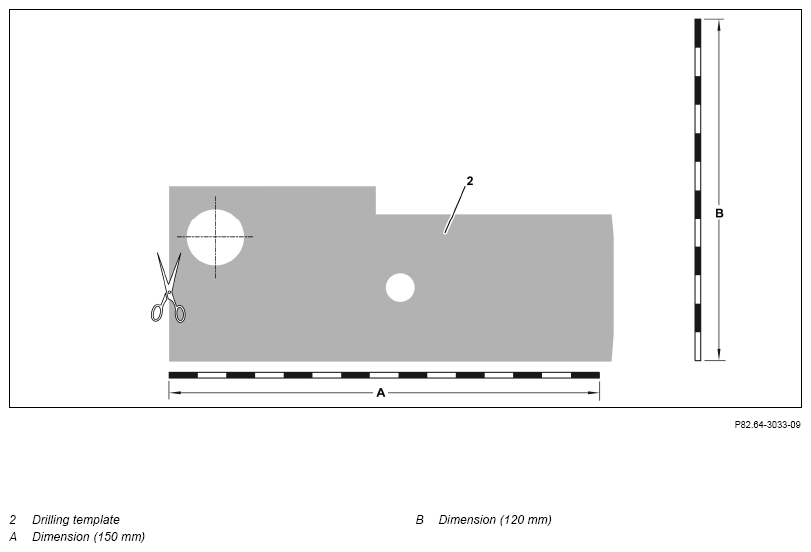

6. Print out drilling template (2).
7. Determine dimensions (A, B) of print-out.
8. Determine scaling factor.

   Divide dimension specified (A) by dimension determined (A).

   Divide dimension specified (B) by dimension determined (B).

9. Copy printed drilling template (2) to original size using the determined scaling factor.
10. Cut out drilling template (2).
