Convert Plug Housing For Antenna Lines - AZ82.60-P-0031-05LF

Model 217.3/4, 222

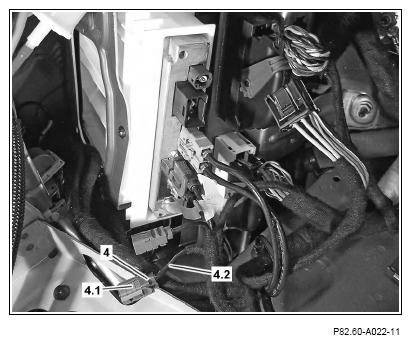

1. Unlock and remove secondary locking clip (4.1) at bordeaux violet connector socket (4).
2. Remove electric line (4.2) from bordeaux violet connector socket (4).

   The bordeaux violet connector socket (4) is no longer required.

   Courtesy of MERCEDES-BENZ USA

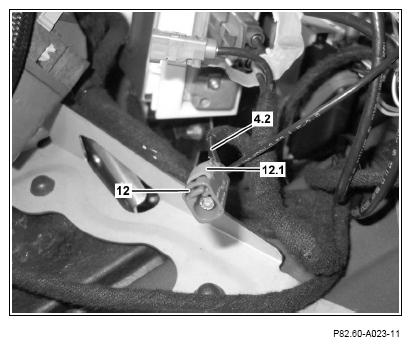

3. Unlock secondary locking clip (12.1) at bordeaux violet 1-pin connector socket (12).
4. Install previously removed electric lines (4.2) into contact cavity of bordeaux violet 1-pin connector socket (12).
5. Lock secondary locking clip (12.1) at bordeaux violet 1-pin connector socket (12).

   Courtesy of MERCEDES-BENZ USA
