Check Setting Of High Beam - AP82.10-P-8260-02S

MODEL 217

Shown on MODEL 222

Courtesy of MERCEDES-BENZ USA

Check setting of high beam headlamps.

Align headlamp aimer (01) parallel to the vehicle.

Otherwise it could result in faulty display.

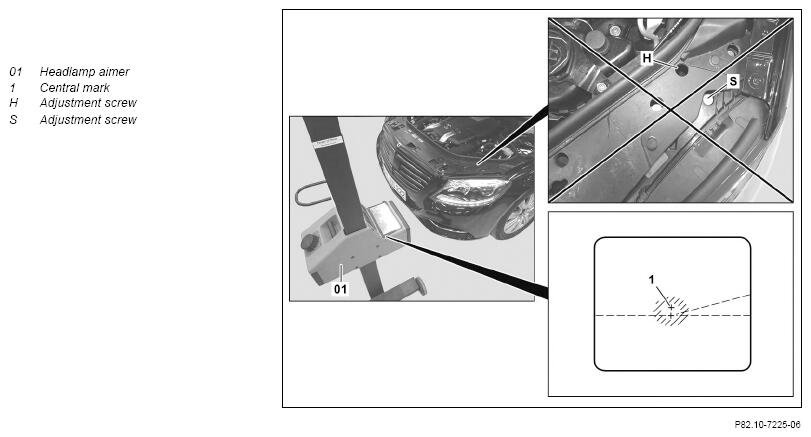

The center of the light beam must be positioned on the central mark (1) in the headlamp aimer (01).

Do not  perform any correction at the adjustment screws (H, S) of the headlamps, as in the process the low beams which were adjusted previously will be wrongly adjusted again!
