Remove/Install Taillamp, Trunk Lid - AR82.10-P-4915LC
MODEL 217
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove trunk lid cover | AR88.50-P-5000LC | |

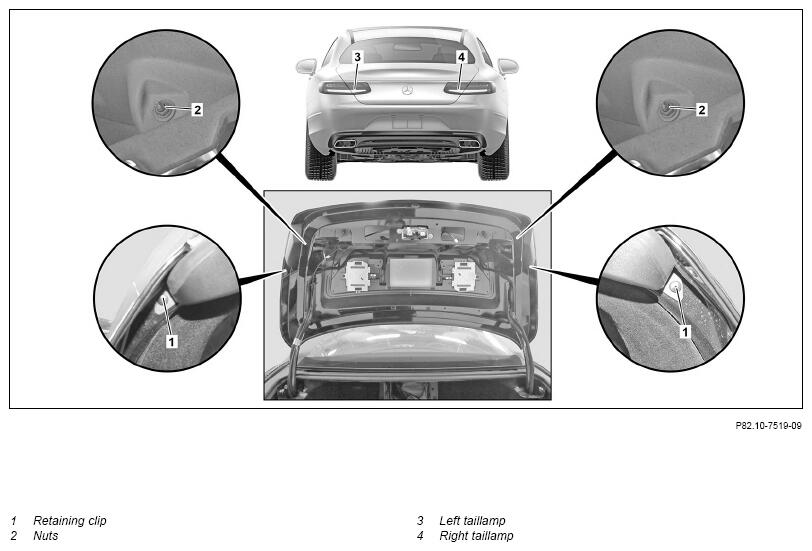

| 2 | Remove retaining clips (1) | ||
| 3 | Unscrew nuts (2) | ||
| 4 | Remove left taillamp (3) or right taillamp (4) until electrical connector is accessible | ||
| 5 | Disconnect electrical connector of left taillamp (3) or right taillamp (4) | ||
| 6 | Remove left taillamp (3) or right taillamp (4) | ||
| 7 | Install in the reverse order |
