Remove/Install Taillamp - AR82.10-P-4905LC
Model 217
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove load compartment floor | Model 217.4 | AR68.30-P-4820LCA |
| Model 217.3 | AR68.30-P-4600LC | ||

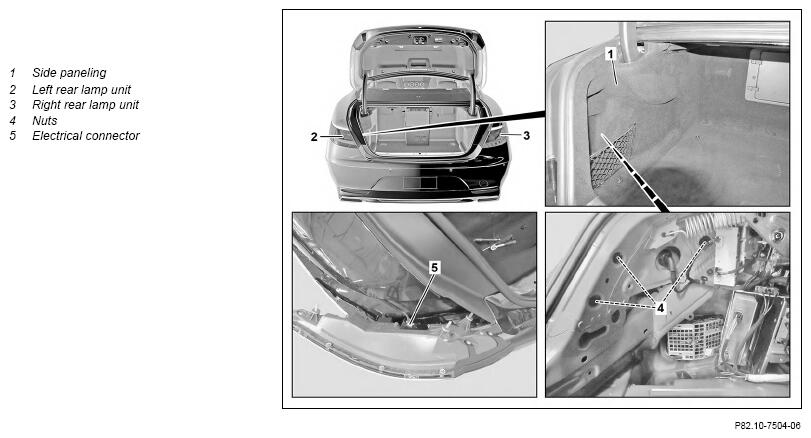

| 2 | Detach side paneling (1) in area of left rear lamp unit (2) or right rear lamp unit (3) until nuts (4) are accessible | Model 217.4 | AR68.30-P-4800LCA |
| Model 217.3 | AR68.30-P-4600LC | ||
| 3 | Unscrew nuts (4) | ||
| 4 | Remove left rear lamp unit (2) or right rear lamp unit (3) until electrical connector (5) at left rear lamp unit (2) or right rear lamp unit (3) is accessible | ||
| 5 | Disconnect electrical connection (5) | ||
| 6 | Remove left rear lamp unit (2) or right rear lamp unit (3) | ||
| Check | |||
| 7 | Check for correct seating of the left rear lamp unit (2) or right rear lamp unit (3) | AR60.00-P-0700-01LC | |
| Taillamp to bumper | *BE60.00-P-1017-01DA | ||
| Outside of taillamp to inside of taillamp | *BE60.00-P-1018-01DA | ||
| Rear fender to taillamp | *BE60.00-P-1008-01DA | ||
| Fig 2 | |||
| 8 | Install in the reverse order |
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 217.3 | Model 217.4 | ||
|---|---|---|---|---|---|
| BE60.00-P-1008-01DA | Rear fender to taillamp | Dimension "F9C" | mm | 1, 0 (±0, 5) | 1, 0 (±0, 5) |
| For picture, see | AR60.00-P-0700-01LC | AR60.00-P-0700-01LC | |||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 217.3 | Model 217.4 | ||
|---|---|---|---|---|---|
| BE60.00-P-1017-01DA | Taillamp to bumper | Dimension "F162A" | mm | 1, 5 (±1, 0) | 1, 5 (±1, 0) |
| For picture, see | AR60.00-P-0700-01LC | AR60.00-P-0700-01LC | |||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 217.3 | Model 217.4 | ||
|---|---|---|---|---|---|
| BE60.00-P-1018-01DA | Outside of taillamp to inside of taillamp | Dimension "F164" | mm | 3, 5 (±1, 0) | 3, 5 (±1, 0) |
| For picture, see | AR60.00-P-0700-01LC | AR60.00-P-0700-01LC | |||
