Remove/Install License Plate Lamps - AR82.10-P-5161LC

Model 205.3/4

Model 217

Model 238

Shown on model 217

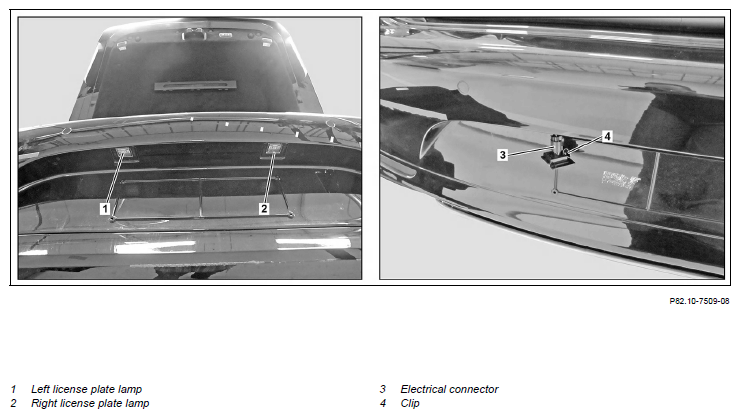

Fig 1: License Plate Lamps Component Location - Model 217

Courtesy of MERCEDES-BENZ USA

	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove/install
1	Using a suitable screwdriver, press clamps (4 from below inwards and remove left license plate lamp (1) or right license plate lamp (2)	Carefully release and move out. Otherwise paint damage can occur.
2	Disconnect electrical connector (3) at left license plate lamp (1) or right license plate lamp (2)
3	Install in the reverse order
