Check Wiper Arms And Adjust - AR82.30-P-6000LC

Model 166 as of 8/25/11

Model 217, 231, 292

Model 222

with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)

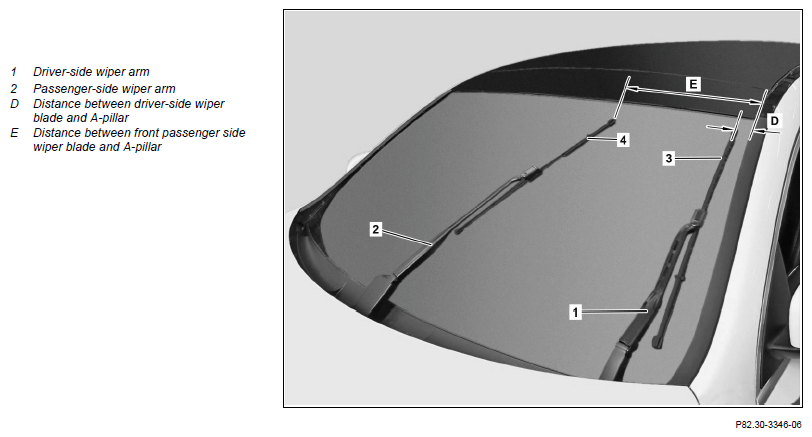

Shown on MODEL 292

Courtesy of MERCEDES-BENZ USA

	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).	AS82.30-Z-0001-01A
	Check
1	Manually position windshield wiper system in reversing position
2	Remove wiper blade from driver-side wiper arm (1)	When working on raised driver-side wiper arm (1), ensure that this does not fall onto the windshield. Otherwise windshield will be damaged. Driver-side wiper arm (1) must not be moved.
3	Check driver-side wiper arm (1)	Model 217 Model 222 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) Distance between driver-side wiper blade and A-pillar (D): approx. 45 mm. Model 166 as of 8/25/11 Model 292 Distance between driver-side wiper blade and A-pillar (D) is approx. 30 mm. Model 231 Distance between driver-side wiper blade and A-pillar (D) is approx. 50 mm.
4	Remove passenger-side wiper blade	When working on raised passenger side wiper arm (2), ensure that this does not fall onto the windshield. Otherwise windshield will be damaged. Passenger-side wiper arm (2) must not be moved.
5	Check passenger-side wiper arm (2)	Model 217 Model 222 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) The distance between the passenger-side wiper blade and the A-pillar (E) results from the specified distance between the driver-side wiper blade and the A-pillar (D). Model 166 as of 8/25/11, 292 Distance between passenger-side wiper blade and A-pillar (E) is approx. 460 mm. Model 231 Distance between passenger-side wiper blade and A-pillar (E) is approx. 600 mm.
	Clean
6	Clean wiper blade fixtures on driver-side wiper arm (1) and passenger-side wiper arm (2) using a clean cloth
7	Cover driver-side wiper arm (1) and passenger-side wiper arm (2) with appropriate means (scratch protection)
8	Measure angle of incidence of driver-side wiper arm (1) to windshield, record and compare test value with adjustment value		AR82.30-P-6000-01LC
	Notes on wiper arm adjustment	When changing from reversing position to parked position, make sure that driver-side wiper arm (1) does not make direct contact with windshield. Otherwise, the windshield may be scratched.	AH82.30-P-0001-01A
		Model 166 as of 8/25/11 Model 292Angle of incidence of driver-side wiper arm in reversing position	*BE82.30-P-1001-01J
		Model 166 as of 8/25/11 Model 292Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01J
		Model 217 Model 222 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) Angle of incidence of driver-side wiper arm in reversing position	*BE82.30-P-1001-01M
		Model 217 Model 222 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01M
		Model 231 Angle of incidence of driver-side wiper arm in reversing position	*BE82.30-P-1001-01L
		Model 231 Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01L
		Adapter	Fig 2
		Adjusting tool set	Fig 4
9	Measure angle of incidence of passenger-side wiper arm (2) to windshield, record and compare test value with adjustment value		AR82.30-P-6000-01LC
	Notes on wiper arm adjustment	When changing from reversing position to parked position, make sure that passenger-side wiper arm (2) does not make direct contact with windshield. Otherwise, the windshield may be scratched.	AH82.30-P-0001-01A
		Model 166 as of 8/25/11 Model 292 Angle of incidence of passenger-side wiper arm in reversing position	*BE82.30-P-1002-01J
		Model 166 as of 8/25/11 Model 292 Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01J
		Model 217 Model 222 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) Angle of incidence of passenger-side wiper arm in reversing position	*BE82.30-P-1002-01M
		Model 217 Model 222 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01M
		Model 231 Angle of incidence of passenger-side wiper arm in reversing position	*BE82.30-P-1002-01L
		Model 231 Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01L
		Adapter	Fig 2
		Adjusting tool set	Fig 4
	Adjust
10	Adjust angle of incidence of wiper arm on driver-side (1) in park position Notes on wiper arm adjustment	If the test values deviate from the tolerance range in the reversing position or in the parked and reversing position.	AH82.30-P-0001-01A
		Distort driver-side wiper arm (1) at least by the value of the tolerance deviation in reversing position.	AR82.30-P-6100-01LC
		Model 166 as of 8/25/11 Model 292 Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01J
		Model 217 Model 222 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01M
		Model 231 Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01L
		Adapter	Fig 2
		Adjusting tool set	Fig 4
		Adapter	Fig 1
11	Adjust windshield wiper system	In the event that the check values of the driver-side wiper arm (1,) deviate from the tolerance range in parked position.
		Model 166 as of 8/25/11 Model 292	AR82.30-P-6400-01GZ
		Model 217 Model 222 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)	AR82.30-P-6400-01CW
		Model 166 as of 8/25/11 Model 292 Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01J
		Model 217 Model 222 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01M
		Model 217 Model 222 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) Bolt/nut, windshield wiper system to body	*BA82.30-P-1001-01P
		Extraction hook	Fig 3
		Adjusting tool set	Fig 4
12	Adjust angle of incidence of passenger-side wiper arm (2) in park position Notes on wiper arm adjustment	If the test values deviate from the tolerance range in the reversing position or in the parked and reversing position.	AH82.30-P-0001-01A
		Distort passenger-side wiper arm (2) at least by the value of the tolerance deviation in reversing position.	AR82.30-P-6100-01LC
		Model 166 as of 8/25/11 Model 292 Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01J
		Model 217 Model 222 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01M
		Model 231 Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01L
		Adapter	Fig 2
		Adjusting tool set	Fig 4
		Adapter	Fig 1
13	Adjust windshield wiper system	Model 166 as of 8/25/11 Model 217, 231, 292 Model 222 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) In the event that the check values of the passenger-side wiper arm (2) deviate from the tolerance range in parked position. Model 166 as of 8/25/11 Model 292	AR82.30-P-6400-01GZ
		Model 217 Model 222 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)	AR82.30-P-6400-01CW
		Model 217 Model 222 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01M
		Model 217 Model 222 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) Bolt/nut, windshield wiper system to body	*BA82.30-P-1001-01P
		Model 217 Model 222 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) Extraction hook	Fig 3
		Adjusting tool set	Fig 4
14	Install wiper blades	When working on raised driver-side wiper arm (1) or passenger-side wiper arm (2), ensure that they do not fall onto the windshield. Otherwise windshield will be damaged.

Fig 1: Identifying Adapter (292 589 00 40 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Adapter (231 589 00 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Adjusting Tool Set (211 589 02 21 00)

Courtesy of MERCEDES-BENZ USA
