Adjust Wiper Arms - AR82.30-P-6100-01LC

Model 166 as of 8/25/11

Model 217, 231, 292

Model 222

with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)

TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number	Designation			Model 166	Model 292
BE82.30-P-1003-01J	Angle of incidence of driver-side wiper	Left-hand drive vehicle	∠°	+2, 0...+6, 0	+1, 1...+5, 1
BE82.30-P-1003-01J	Angle of incidence of driver-side wiper	Right-hand drive vehicle	∠°	-2, 0...-6, 0	-1, 1...-5, 1

WIPER ARM TEST AND ADJUSTMENT VALUES

Number	Designation			Model 231
BE82.30-P-1003-01L	Angle of incidence of driver-side wiper arm in parked position	Left-hand drive vehicle	∠°	+3...+5
BE82.30-P-1003-01L		Right-hand drive vehicle	∠°	-3...-5

TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number	Designation			Model 217	Model 222
BE82.30-P-1003-01M	Angle of incidence of driver-side wiper arm in parked position	Left-hand drive vehicle	∠°	+3, 6...+5, 4	+3, 6...+5, 4
BE82.30-P-1003-01M		Right-hand drive vehicle	∠°	-3, 6...-5, 4	-3, 6...-5, 4

TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number	Designation			Model 166	Model 292
BE82.30-P-1004-01J	Angle of incidence of passenger-side wiper arm in parked position	Left-hand drive vehicle	∠°	+4, 0...+8, 0	+1, 8...+5, 8
BE82.30-P-1004-01J		Right-hand drive vehicle	∠°	-4, 0...-8, 0	-1, 8...-5, 8

WIPER ARM TEST AND ADJUSTMENT VALUES

Number	Designation			Model 231
BE82.30-P-1004-01L	Angle of incidence of passenger-side wiper arm in parked position	Left-hand drive vehicle	∠°	+3...+5
BE82.30-P-1004-01L		Right-hand drive vehicle	∠°	-3...-5

TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number	Designation			Model 217	Model 222
BE82.30-P-1004-01M	Angle of incidence of passenger-side wiper arm in parked position	Left-hand drive vehicle	∠°	+3, 4...+5, 6	+3, 4...+5, 6
BE82.30-P-1004-01M		Right-hand drive vehicle	∠°	-3, 4...-5, 6	-3, 4...-5, 6

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

The setting of the angle of incidence on the wiper arm (1) to be adjusted is always carried out in the park position and only when the check values deviate from the tolerance range in the reverse or park position. While doing so, the wiper arm (1) to be adjusted is at least twisted by the value of the tolerance deviation in reversing position.

The adjustment tool set contains angle gauge (A) and adjustment lever (C).

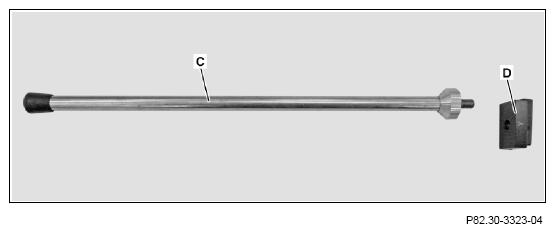

Remove plastic holders (D) of adjustment lever (C) from the adjustment tool set.

Courtesy of MERCEDES-BENZ USA
Remove angle gauge (A) from the adjustment tool set.

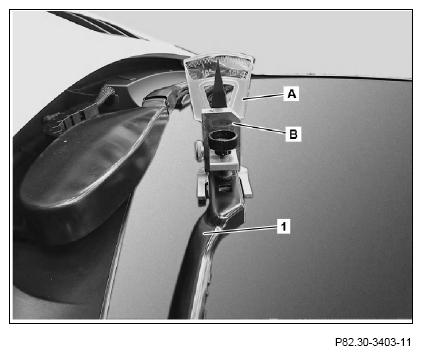

Insert adapter (B) into guide of angle gauge (A) and fix in place with screw/bolt at angle gauge (A).
Slide adapter (B) together with angle gauge (A) onto wiper blade mount of wiper arm and attach with screw/bolt.
Lower wiper arm (1) to be adjusted carefully onto windshield.
All three contact points at the foot of the angle gauge (A) must make contact with the windshield.

Shown on driver-side wiper arm (1)

Courtesy of MERCEDES-BENZ USA

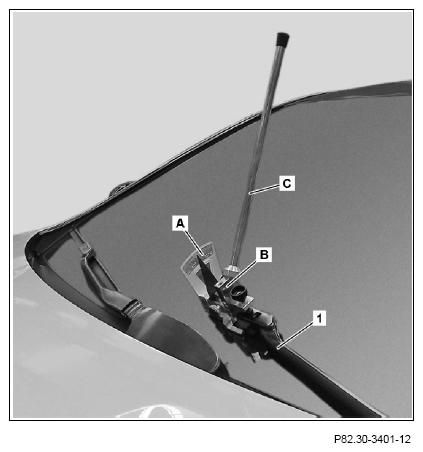

Mount adjustment lever (C) to adapter (B).
Carefully open engine hood and place in the vertical position.
Shown on driver-side wiper arm (1)

Courtesy of MERCEDES-BENZ USA

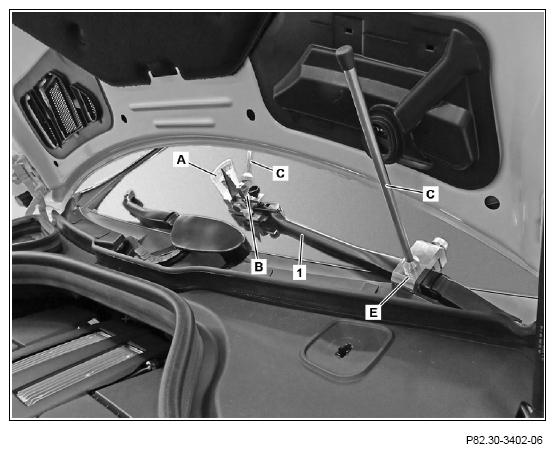

Fit adapter (E) as far away as possible from angle gauge (A) and adapter (B) onto wiper arm (1) to be adjusted.
Fit the second adjustment lever (C) onto adapter (E).
The wiper arm (1) to be adjusted is twisted via adjustment lever (C), which was mounted onto adapter (B).

Adjustment lever (C) serves as a counterholder and was mounted onto adapter (E).
Push adjustment lever (C) fitted to adapter (B) in the direction required until the wiper arm (1) to be adjusted is twisted by at least the value of the tolerance deviation in the reverse position.
Remove adjustment lever (C) and adapter (E) from the wiper arm (1) to be adjusted.
Close hood.
Shown on driver-side wiper arm (1)

Courtesy of MERCEDES-BENZ USA
Read off angle of incidence for adjusted wiper arm (1) on scale of angle gauge (A), note it down and compare against the test and adjustment values, adjust again if necessary. Model 166 as of 8/25/11
Model 292

Model 166 as of 8/25/11

Model 292

Model 217

Model 222

with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)

Model 217

Model 222

with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)

Model 231

Model 231
Remove angle gauge (A) with adapter (B) from adjusted wiper arm (1).
Shown on driver-side wiper arm (1)

Courtesy of MERCEDES-BENZ USA
