Remove/Install Sealing Rail On Outside - AR72.10-P-1700LC

Model 217.3

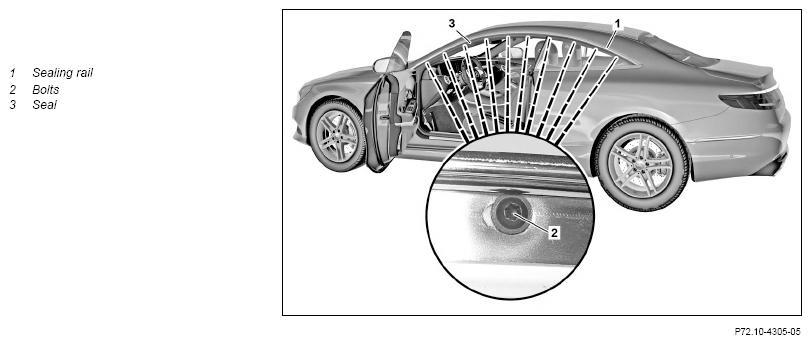

G15300825Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Lower front and rear side window
2 Remove seal (3) from sealing rail (1)
3 Remove bolts (2)
4 Remove sealing rail (1) INSTALLATION IMPORTANT : Align sealing rail (1) in elongated holes.
5 Install in the reverse order
