Removing/Installing Windowbag - AR91.60-P-0693LCA
Model 217.4
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Disconnect battery ground line | AR54.10-P-0003LF | |
| 3 | Remove left or right door trim | AR72.10-P-1000LC | |

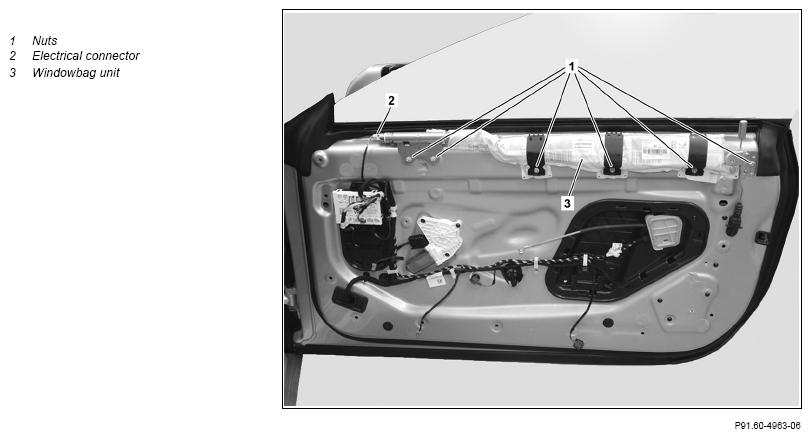

| 4 | Release and disconnect electrical connection (2) | ||
| 5 | Unscrew nuts (1) | *BA91.60-P-1012-01I | |
| 6 | Remove windowbag unit (3) | ||
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Check and erase vehicle fault memory using the diagnostic system | When replacing windowbag unit (3). | |
| AD00.00-P-2000-04B |
AIRBAG
| Number | Designation | Model 217 | |
|---|---|---|---|
| BA91.60-P-1012-01I | Nut, head airbag to inner door panel | Nm | 6 |
