Remove/Install Side Supplemental Restraint System (SRS) Pressure Sensor - AR91.60-P-0760LC
Model 217

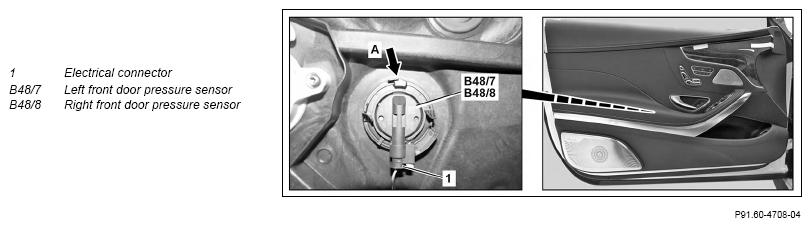

Shown on left front door
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100°C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Topical note | Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | |
| Topical note | Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | |
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Remove/install | |||
| 1 | Disconnect ground line at the on-board electrical system battery | AR54.10-P-0003LF | |
| 2 | Remove door lining from left or right front door | AR72.10-P-1000LC | |
| 3 | Disconnect electrical connector (1) | ||
| 4 | Lift shackle (arrow A) and twist left front door pressure sensor (B48/7) or right front door pressure sensor (B48/8) 90° counterclockwise and remove | ||
| 5 | Install in the reverse order |
