Remove/Install Passenger Airbag Unit - AR91.60-P-0680LC
Model 217
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Disconnect ground line at battery | AR54.10-P-0003LF | |
| 3 | Cover door sill and door sill molding with door sill protector | ||
| 000 588 08 98 00 Cover | WS98.00-P-0014B | ||

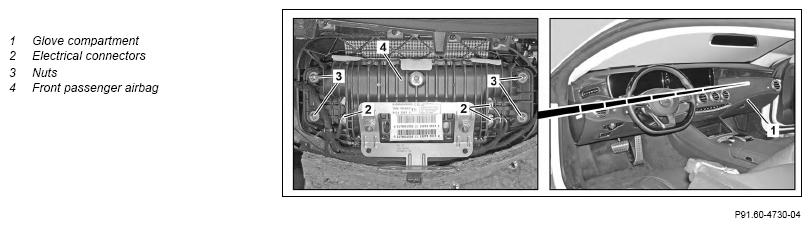

| 4 | Remove glove compartment (1) | AR68.10-P-1400LC | |
| 5 | Release and disconnect electrical connectors (2) from front passenger airbag (4) | ||
| 6 | Unscrew nuts (3) | *BA91.60-P-1001-01I | |
| 7 | Remove front passenger airbag (4) | ||
| 8 | Install in the reverse order | ||
| Check | |||
| 9 | Check and erase vehicle fault memory using diagnostic system | When replacing the front passenger airbag (4). | |
| AD00.00-P-2000-04B |
AIRBAG
| Number | Designation | Model 217 | |
|---|---|---|---|
| BA91.60-P-1001-01I | Nut, front passenger airbag unit to instrument panel | Nm | 5 |
