Remove/Install Head Restraint Guide On Front Seat - AR91.16-P-0050LC
MODEL 217
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove | |||
| 1 | Remove head restraint | AR91.16-P-0040LF | |
| 2 | Set seat backrest to vertical position | ||

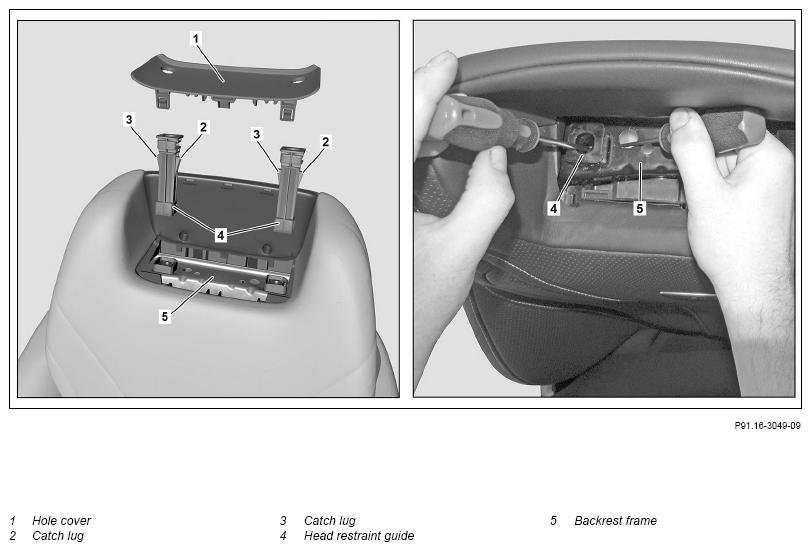

| 3 | Remove hole cover (1) | ||
| 4 | Release catch tabs (2, 3) using a suitable tool through opening in backrest frame (5) | ||
| 5 | Push out respective head restraint guide (4) from below using a suitable tool in the upward direction from backrest frame (5) | ||
| Install | |||
| 6 | Insert new head restraint guide (4) from above into backrest frame (5) until it latches audibly | ||
| 7 | Install hole over (1) | ||
| 8 | Move backrest toward rear as far as possible until the head restraint can be installed | ||
| 9 | Install heat restraint | AR91.16-P-0040LF |
