Remove/Install Front Heated Seats Control Unit - AR91.30-P-0030LF
Model 217
with code 873 (Left and right driver's seat heating)
Model 222
with code 873 (Left and right driver's seat heating)

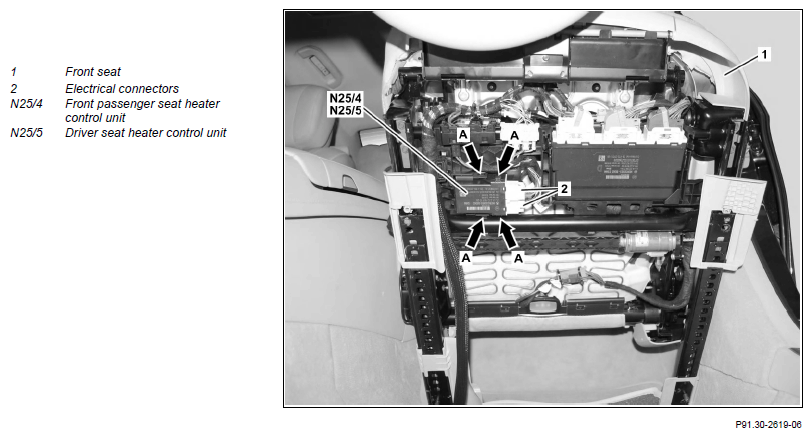

Shown on MODEL 222
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Release front seat (1) and tilt backwards | Do not disconnect electrical connectors at bottom at the front seat (1). |
AR91.10-P-1000LF |
| 2 | Lift catch hooks (arrows A) and remove front passenger seat heater control unit (N25/4) or driver seat heater control unit (N25/5) from bracket | ||
| 3 | Separate electrical connectors (2) | ||
| 4 | Install in the reverse order |
