Remove And Install Cover On Rear Seat Cushion - AR91.18-P-1850LC
Model 217
| Remove/install | |||
| 1 | Remove seat cushion | AR91.12-P-1020LF | |
| 2 | Place seat cushion onto suitable work surface | ||

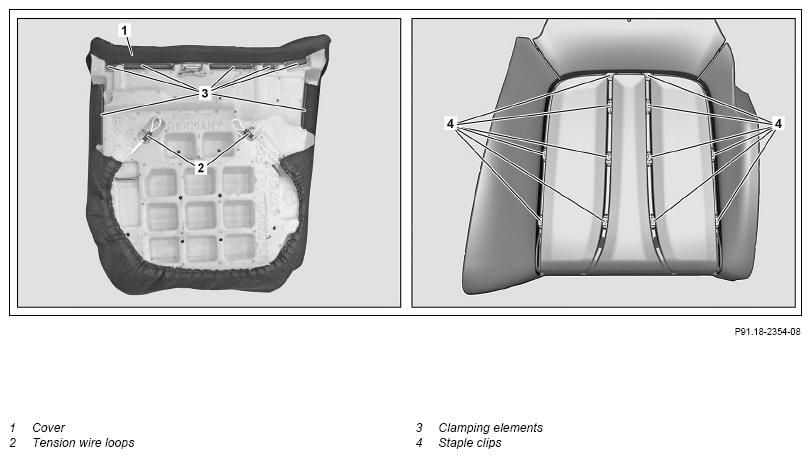

| 3 | Unhook left and right tension cable loops (2) at respective wire hoop | ||
| 4 | Unhook tension elements (3) from wire hoops | ||
| 5 | Slip cover (1) over padding | ||

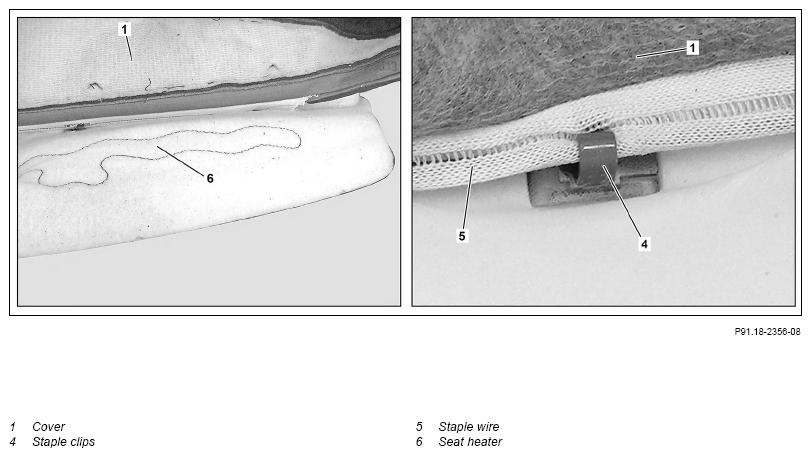

| 6 | Unclip staple wires (5) from staple clips (4) attached to padding | In case of damage to seat heater (6) or a staple clip (4) ↓ Replace padding |
|
| 7 | Remove cover (1) from padding | ||
| 8 | Pull staple wires (5) out of cover (1) | When replacing cover (1). |
|
| 9 | Install in the reverse order |
