Remove/Install Roller Sun Blind - AR68.50-P-3400LC

MODEL 217.3

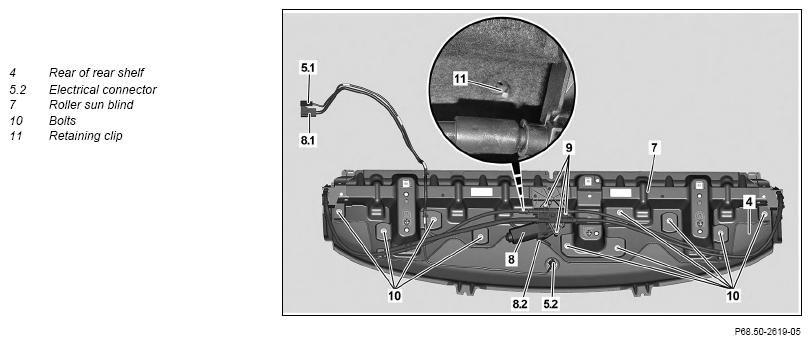

Fig 1: Roller Sun Blind Component Location - Model 217.3

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear shelf		AR68.30-P-4581LC
2	Lay rear of rear shelf (4) down on suitable subsurface
3	Unscrew bolts (10) form roller sun blind (7)
4	Unclip retaining clips (11) from roller sun blind (7)
5	Disconnect electrical connection (5.2)
6	Remove roller sun blind (7) from rear of rear shelf (4)
7	Install in the reverse order
