Remove/Install Rear Seat Belts - AR91.40-P-0681LCA
Model 217.4
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Risk of injury . Injury may result when the tension in the spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Topical note | Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||

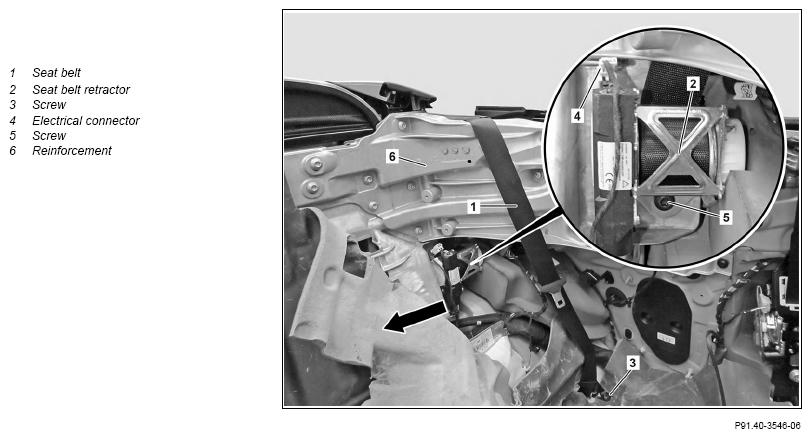

| 1 | Remove lower side paneling in rear | AR68.30-P-4780LC | |
| 2 | Remove bolt (3) | *BA91.40-P-1009-01V | |
| 3 | Hold rear insulation to one side (arrow) | ||
| 4 | Disconnect electrical connection (4) | ||
| 5 | Remove screw/bolt (5) | *BA91.40-P-1008-01V | |
| 6 | Guide seat belt (1) through reinforcement (6) | ||
| 7 | Remove belt retractor (2) to the front | When replacing belt retractor (2) ↓ Dispose of the belt retractor (2) properly |
|
| 8 | Install in the reverse order | ||
| 9 | Connect diagnostic system and check supplemental restraint system (SRS) | When replacing belt retractor (2). | |
| AD00.00-P-2000-04B |
SEAT BELTS
| Number | Designation | Model 217 | |
|---|---|---|---|
| BA91.40-P-1008-01V | Bolt, rear seat belt retractor to rear panel | Nm | 35 |
SEAT BELTS
| Number | Designation | Model 217 | |
|---|---|---|---|
| BA91.40-P-1009-01V | Bolt, rear belt end fitting to longitudinal member | Nm | 35 |
