Remove/Install Rear Seat Belt Buckle - AR91.40-P-1516LC
MODEL 217
| Remove/install | |||
| 1 | Remove seat cushion | AR91.12-P-1020LF | |

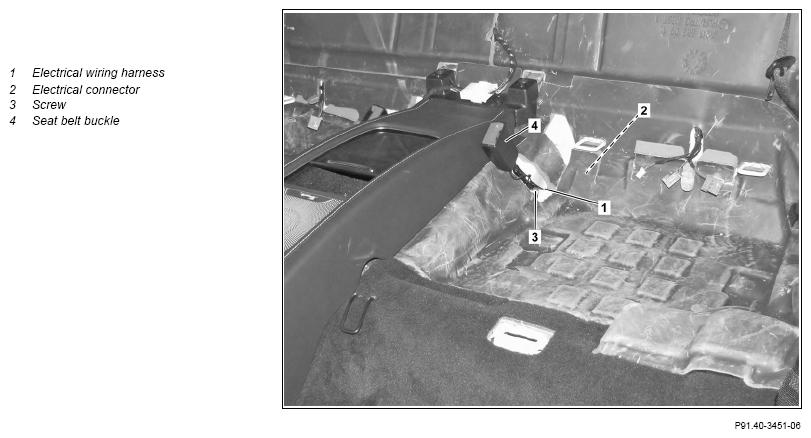

| 2 | Create access to electrical wiring harness (1) | ||
| 3 | Disconnect electrical connection (2) | ||
| 4 | Remove screw/bolt (3) and take out belt buckle (4) | *BA91.40-P-1010-01V | |
| 5 | Install in the reverse order |
SEAT BELTS
| Number | Designation | MODEL 217 | |
|---|---|---|---|
| BA91.40-P-1010-01V | Bolt, rear seat belt buckle to tunnel | Nm | 35 |
