Remove/Install Air Cushion Of Multicontour Backrest On Driver And Front Passenger Side - AR91.25-P-1680LF
Model 217
with code 432 (Dynamic seats left and right)
Model 222.0/1/9
with code 432 (Dynamic seats left and right)

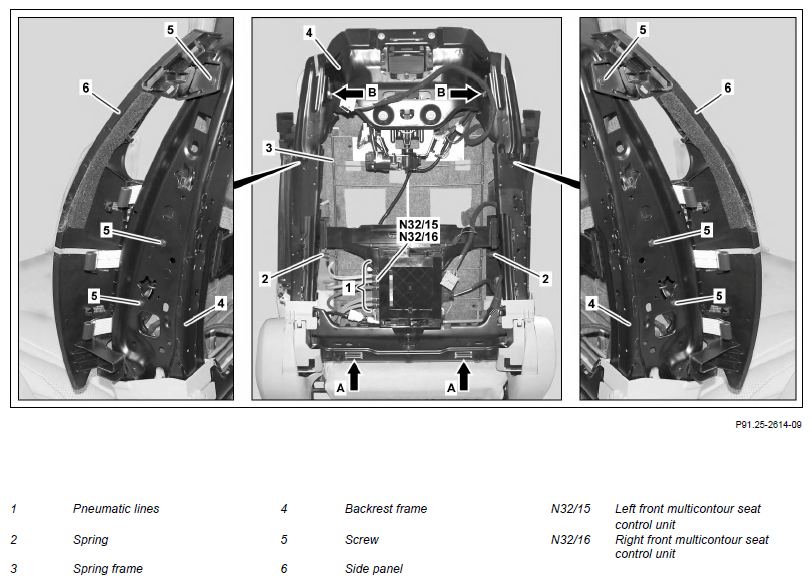

Shown on model 222
| Remove/install | |||
| 1 | Remove left or right sidebag unit | AR91.60-P-0695LF | |
| 2 | Remove left or right front seat backrest padding | AR91.10-P-1095LF | |
| 3 | Release and remove pneumatic lines (1) at left front multicontour seat control unit (N32/15) or right front multicontour seat control unit (N32/16) | ||
| Fig 2 | |||
| 4 | Unhook springs (2) from spring frame (3) | Fig 1 | |
| 5 | Remove screws/bolts (5) from side bolsters (6) | ||
| 6 | Unhook side bolsters (6) from backrest frame (4) | ||
| 7 | Unhook spring frame (3) from brackets (arrow A) | ||
| 8 | Swivel spring frame (3) upward with air cushion and side bolsters (6) and remove from openings (arrows B) in backrest frame (4) | ||
| 9 | Install in the reverse order |
