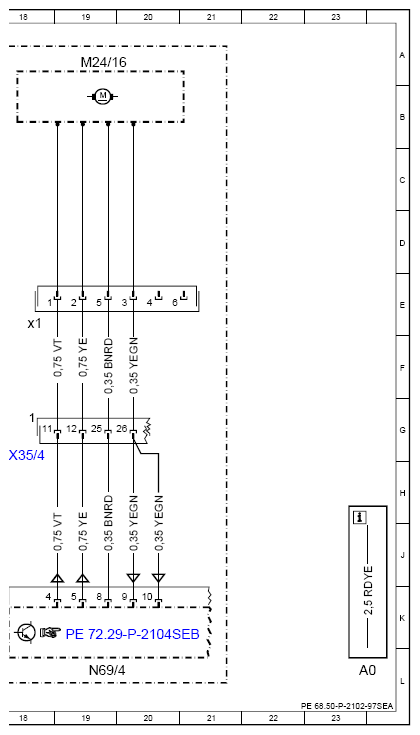

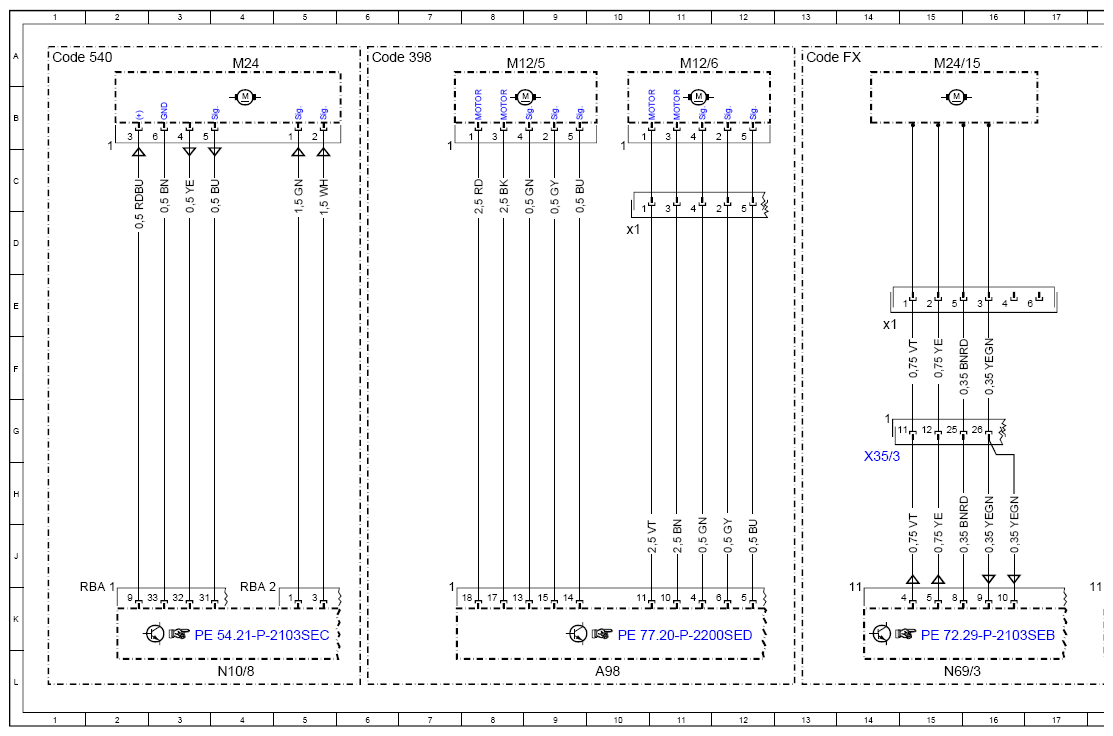

Roller Sun Blind Wiring Diagram - PE68.50-P-2102-97SEA
Model 217, 222 as of model year 2018 with code 398 (Panoramic roof with MAGIC SKY CONTROL) with code 540 (Electric roller blind for rear window)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| A98 | Panoramic sliding roof control module | 10L |
| Code 398 | Panoramic roof with MAGIC SKY CONTROL | 6A |
| Code 540 | Electric roller sun blind for rear window | 1A |
| Code FX | Special version | 13A |
| M12/5 | Front panoramic sliding sunroof roller sun blind drive unit | 8A |
| M12/6 | Rear panoramic sliding sunroof roller sun blind drive unit | 11A |
| M12/6x1 | Rear panoramic sliding sunroof roller sun blind drive unit electrical connector | 10D |
| M24 | Rear window roller sun blind motor | 4A |
| M24/15 | 15A | |
| M24/15x1 | 14E | |
| M24/16 | 19A | |
| M24/16x1 | 18E | |
| N10/8 | Rear SAM control unit | 4L |
| N69/3 | Left rear door control unit | 15L |
| N69/4 | Right rear door control unit | 19L |
| X35/3 | Left rear door electrical connector | 14G |
| X35/4 | Right rear door electrical connector | 18G |
