Remove/Install Upper Part Of Instrument Panel - AR68.10-P-1020B

Model 217

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install

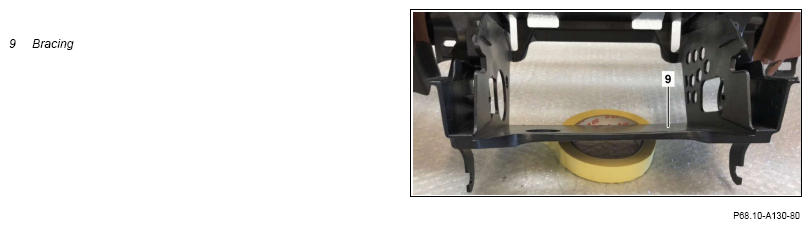

1	Remove instrument panel and set down on suitable base.	Secure bracing (9) using suitable means. The bracing (9) will otherwise be damaged.	AR68.10-P-1000LC
2	Remove head-up display.	Model 217 with code 463 (Head-up display)	AR54.30-P-6400LF

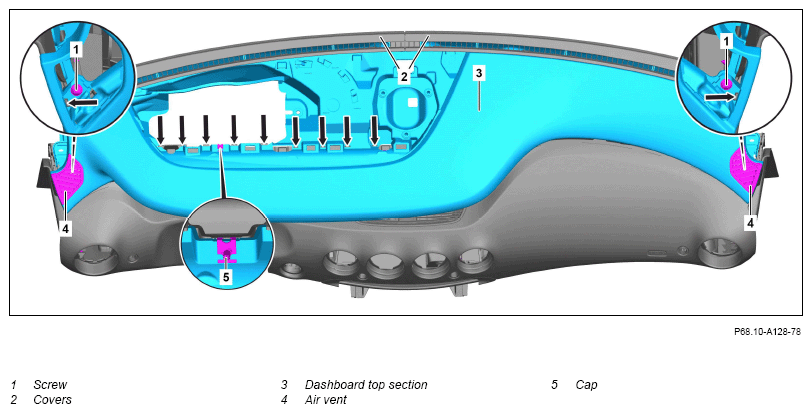

3	Unclip upper air vents (4).	Dismantling tool	Fig 1
4	Remove screws (1).

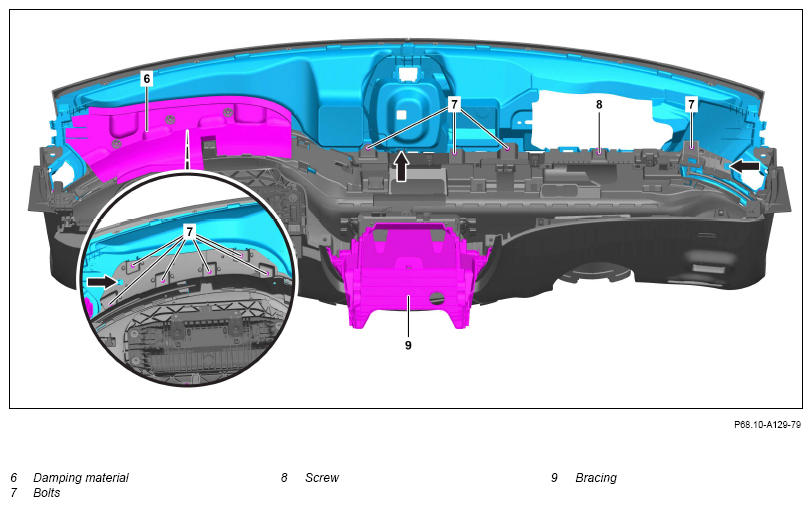

5	Remove damping (6).	Dismantling tool	Fig 1
6	Remove cover cap (5) and unscrew screw (8).
7	Remove screws (7).
8	Unclip instrument panel upper section (3) (arrows) and remove.
9	Remove covers (2).	When replacing instrument panel upper section (3). Dismantling tool	Fig 1
10	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
