Remove/Install Trim Under Glove Compartment - AR68.10-P-1404LC
Model 217

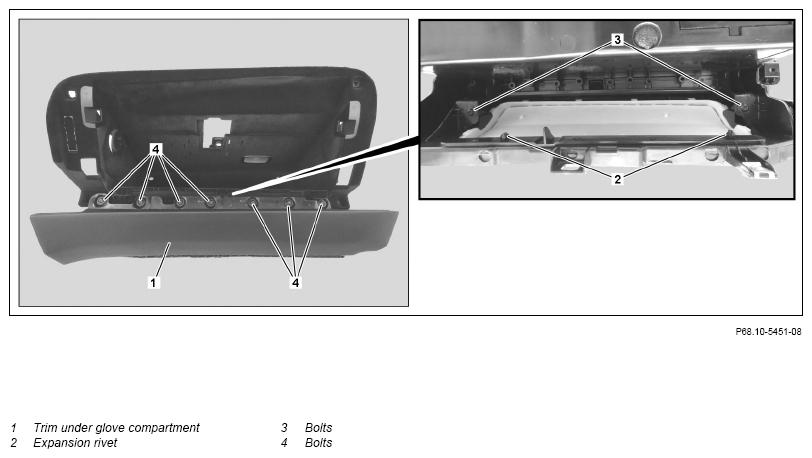

| Remove/install | |||
| 1 | Remove glove compartment flap | AR68.10-P-1403LC | |
| 2 | Remove expansion rivets (2) | ||
| 3 | Remove bolts (3) | ||
| 4 | Remove bolt s (4) | ||
| 5 | Remove trim under glove compartment (1) | ||
| 6 | Install in the reverse order |
