Remove/Install Roller Blind Motor - AR68.50-P-4800LC

Model 217.3

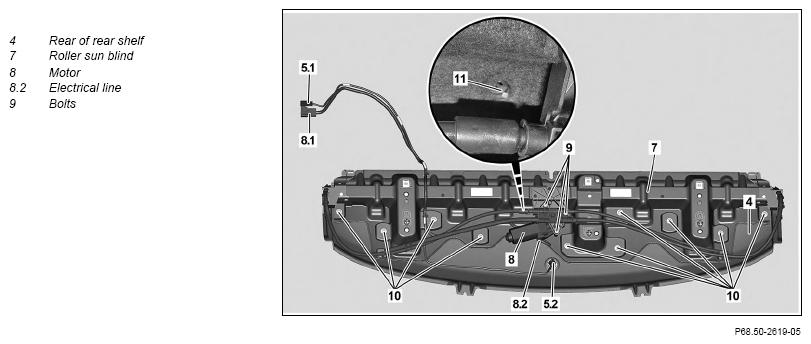

Fig 1: Roller Blind Motor Component Location - Model 217.3

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear shelf (4) with roller sun blind (7)		AR68.30-P-4581LC
2	Lay rear shelf (4) with roller sun blind (7) down on suitable subsurface
3	Expose electrical line (8.2) on engine (8)
4	Unscrew bolts (9) on engine (8)
5	Remove engine (8) from roller sun blind (7)
6	Install in the reverse order
