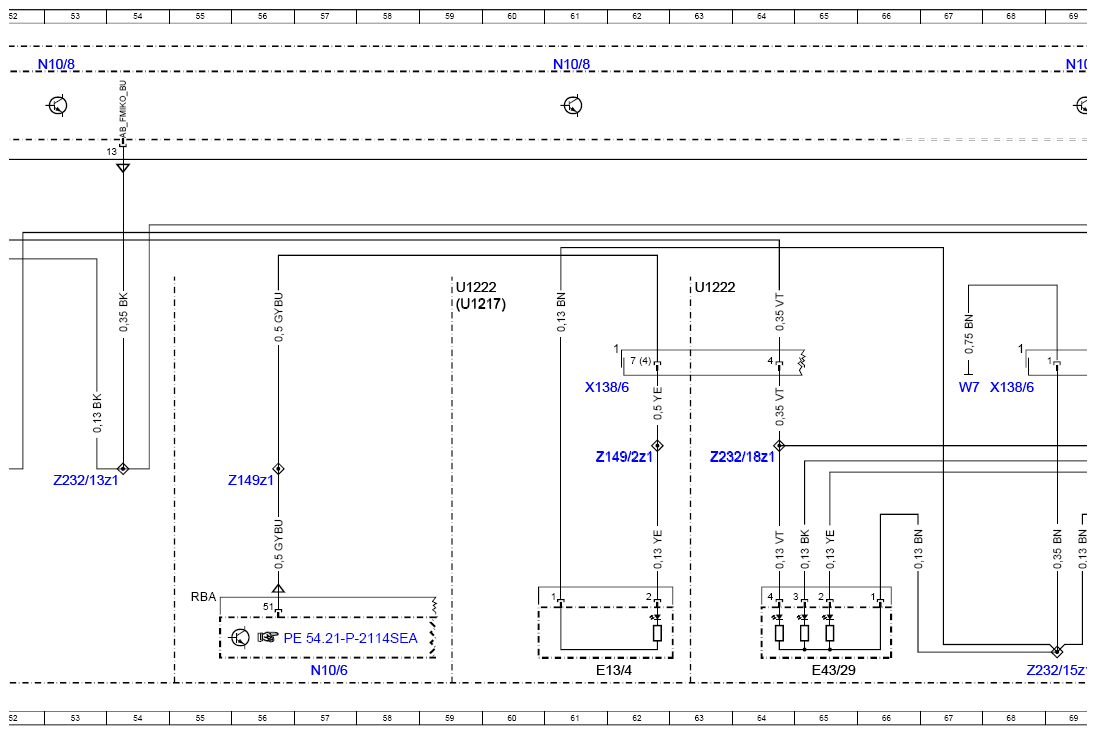

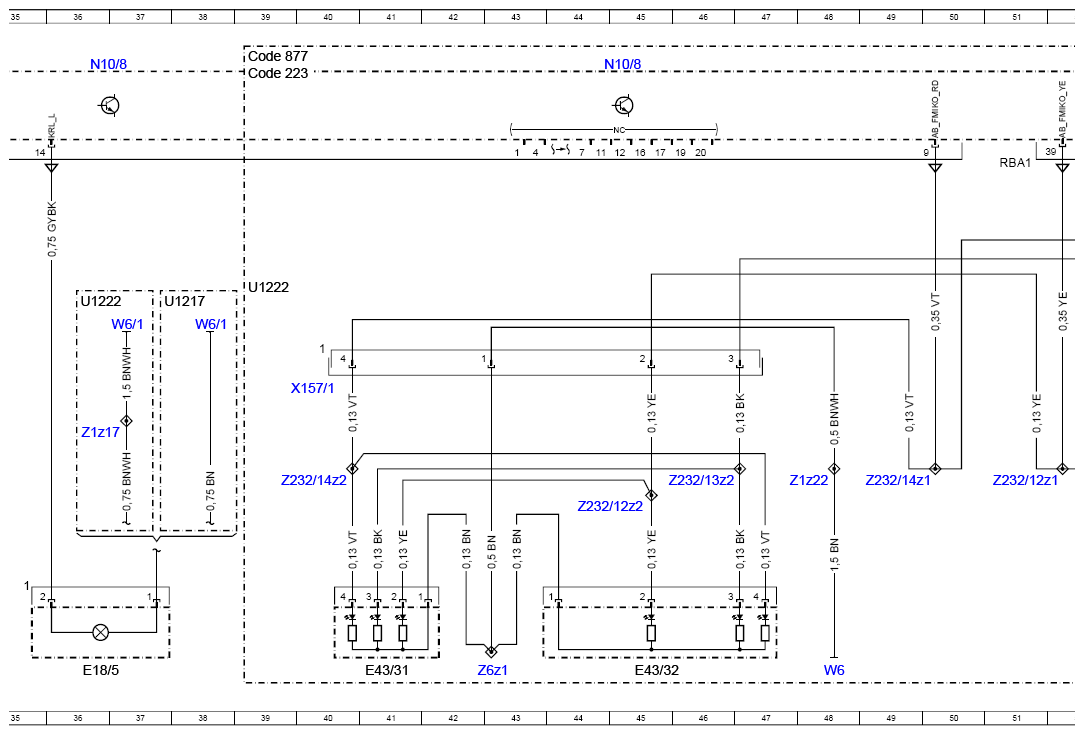

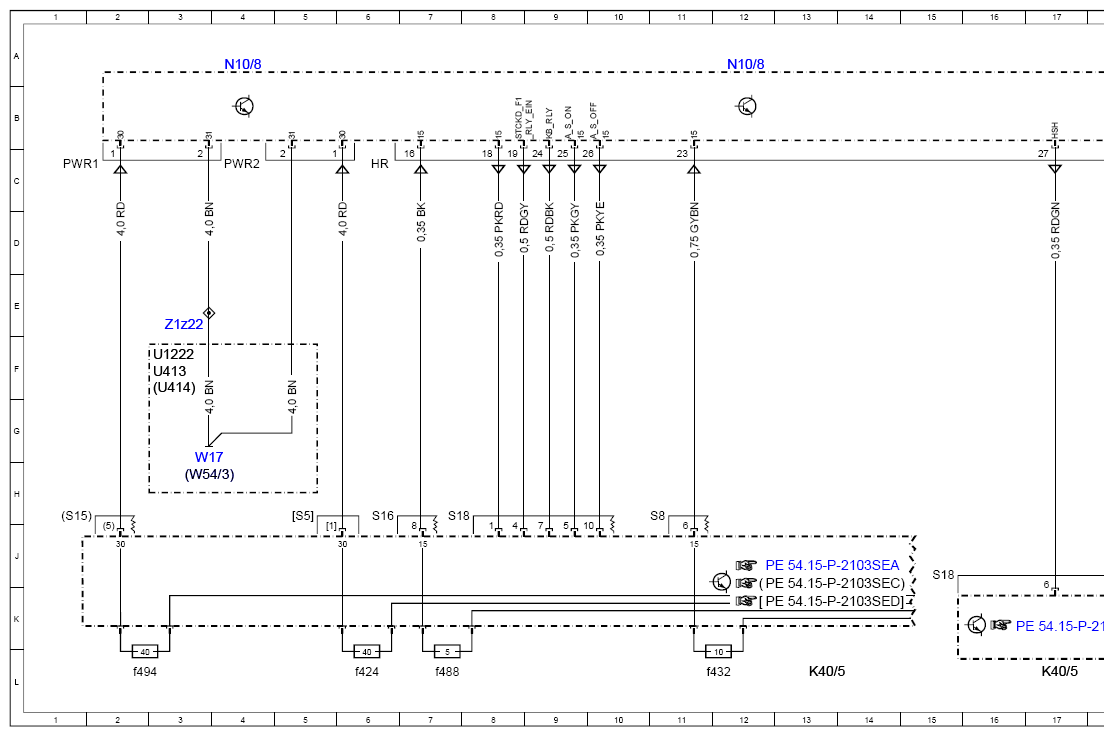

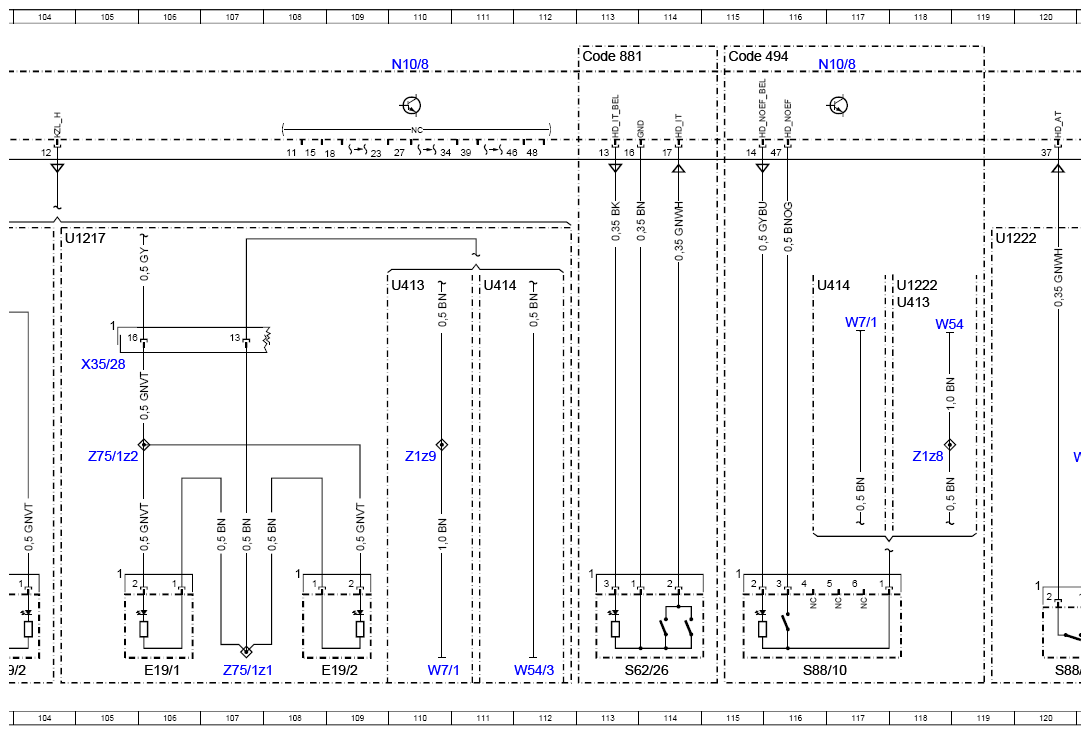

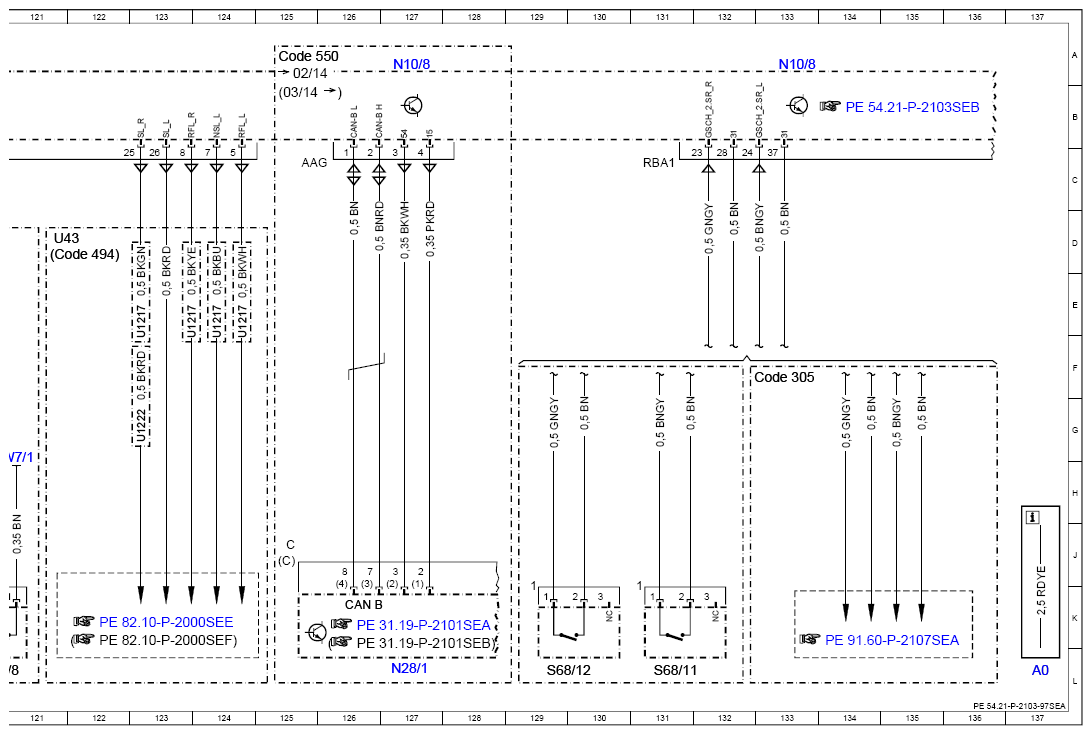

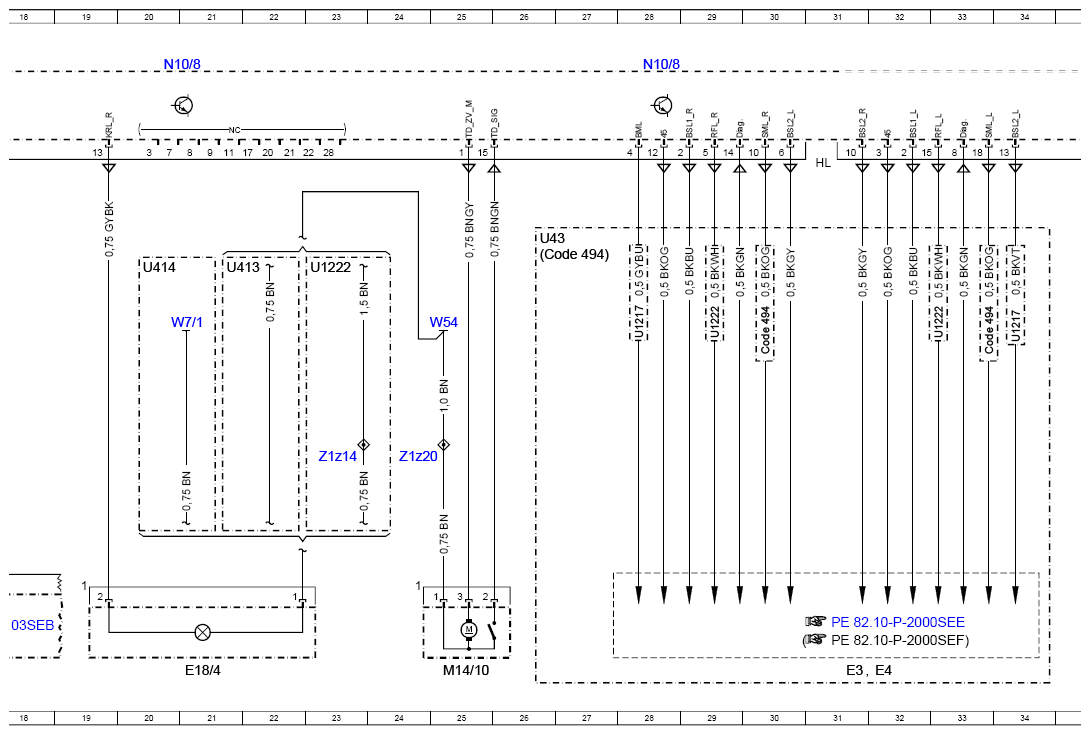

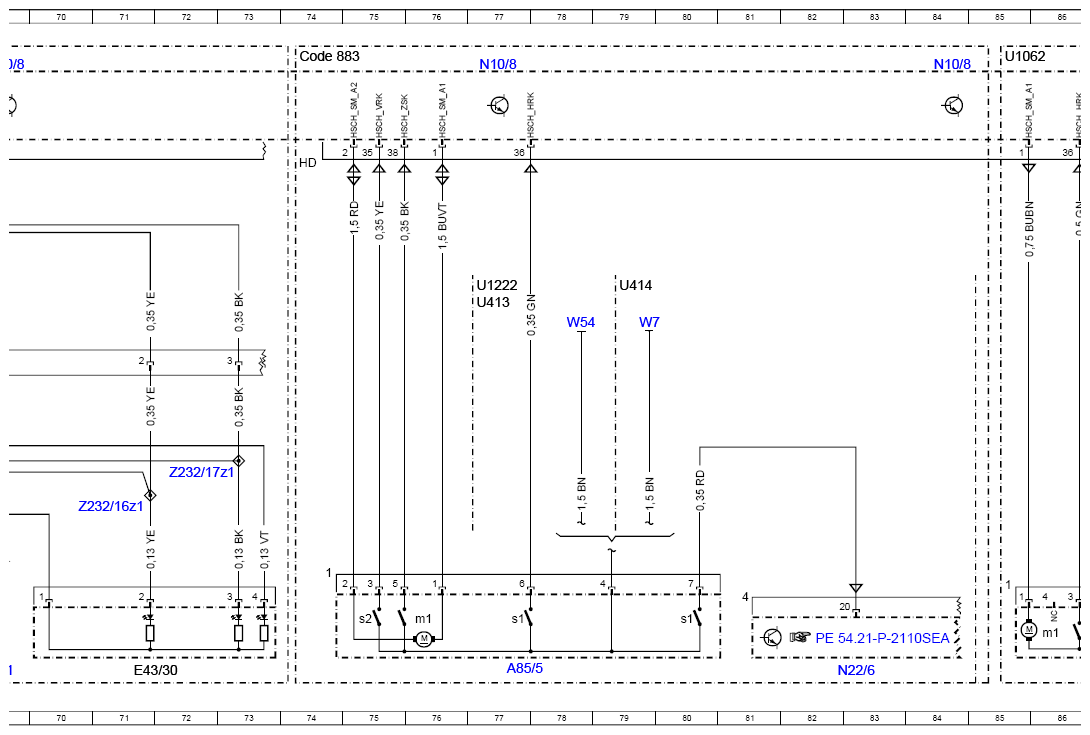

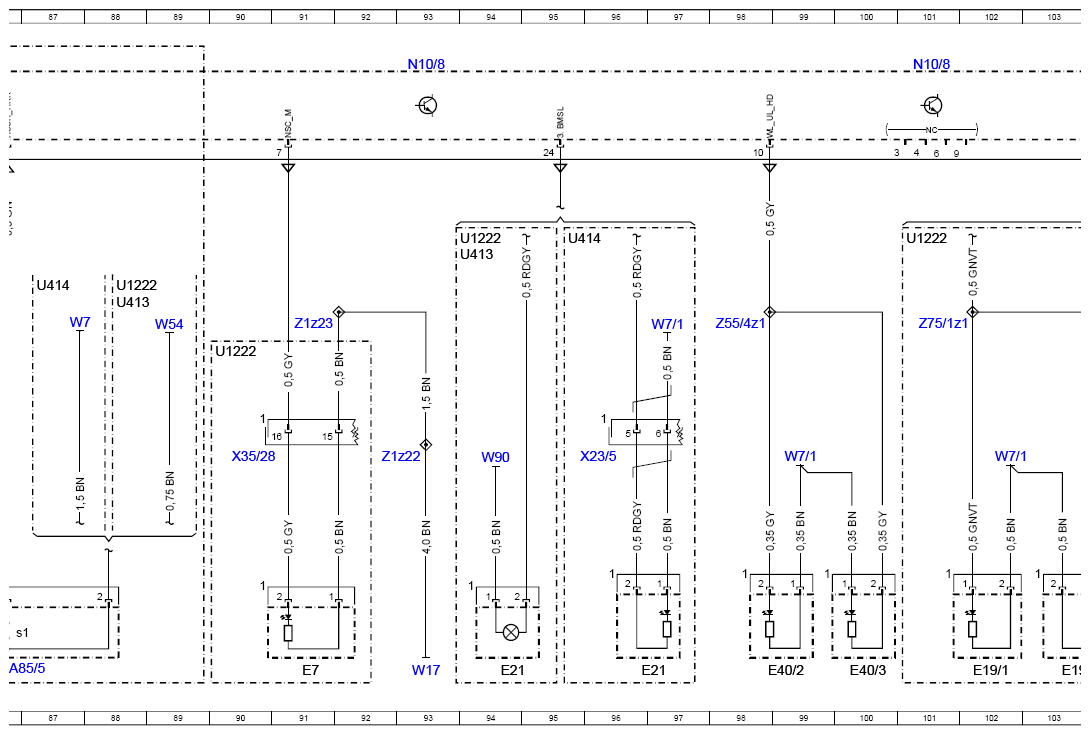

Wiring Diagram Of Rear Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-P-2103-97SEA
Model 217 up to model year 2018 Control unit N10/8, sheet 1
Model 222 up to model year 2018 Control unit N10/8, sheet 1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 137L |
| A85/5 | Trunk lid lock | 86L |
| A85/5 | Trunk lid lock | 77L |
| A85/5m1 | Trunk lid lock motor | 76K |
| A85/5m1 | Trunk lid lock motor | 86K |
| A85/5s1 | Trunk lid lock main catch switch | 77K |
| A85/5s1 | Trunk lid lock main catch switch | 80K |
| A85/5s1 | Trunk lid lock main catch switch | 86K |
| A85/5s2 | Trunk lid lock safety catch switch | 75K |
| CAN B | Interior CAN | 126K |
| Code 223 | Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints | 39A |
| Code 305 | Rear PRE-SAFE | 132F |
| Code 494 | USA version | 30E |
| Code 494 | USA version | 26D |
| Code 494 | USA version | 33E |
| Code 494 | USA version | 121D |
| Code 494 | USA version | 115A |
| Code 550 | Trailer hitch | 125A |
| Code 877 | Ambiance illumination | 39A |
| Code 881 | Trunk lid control | 113A |
| Code 883 | Power closing | 74A |
| E13/4 | Rear center console stowage compartment ambiance illumination | 61L |
| E18/4 | Right luggage compartment lamp | 21L |
| E18/5 | Left luggage compartment lamp | 36L |
| E19/1 | Left license plate lamp | 102L |
| E19/1 | Left license plate lamp | 106L |
| E19/2 | Right license plate lamp | 103L |
| E19/2 | Right license plate lamp | 109L |
| E21 | Center stop lamp | 97L |
| E21 | Center stop lamp | 94L |
| E3 | Left rear lamp unit | 31L |
| E4 | Right rear lamp unit | 32L |
| E40/2 | Left trunk lid/liftgate ambient lamp and warning lamp | 99L |
| E40/3 | Right trunk lid/liftgate ambient lamp and warning lamp | 100L |
| E43/29 | Left rear center console ambiance illumination | 65L |
| E43/30 | Right rear center console ambiance illumination | 71L |
| E43/31 | Left rear panel ambiance illumination | 41L |
| E43/32 | Right rear panel ambiance illumination | 45L |
| E7 | Center rear fog light | 91L |
| K40/5 | Rear fuse and relay module | 13L |
| K40/5 | Rear fuse and relay module | 17L |
| K40/5f424 | Fuse 424 | 6L |
| K40/5f432 | Fuse 432 | 12L |
| K40/5f488 | Fuse 488 | 7L |
| K40/5f494 | Fuse 494 | 2L |
| M14/10 | Tank cap central locking actuator | 25L |
| N10/6 | Front SAM control unit | 57L |
| N10/8 | Rear SAM control unit | 4A |
| N10/8 | Rear SAM control unit | 12A |
| N10/8 | Rear SAM control unit | 20A |
| N10/8 | Rear SAM control unit | 28A |
| N10/8 | Rear SAM control unit | 36A |
| N10/8 | Rear SAM control unit | 45A |
| N10/8 | Rear SAM control unit | 53A |
| N10/8 | Rear SAM control unit | 61A |
| N10/8 | Rear SAM control unit | 69A |
| N10/8 | Rear SAM control unit | 77A |
| N10/8 | Rear SAM control unit | 84A |
| N10/8 | Rear SAM control unit | 93A |
| N10/8 | Rear SAM control unit | 101A |
| N10/8 | Rear SAM control unit | 110A |
| N10/8 | Rear SAM control unit | 117A |
| N10/8 | Rear SAM control unit | 127A |
| N10/8 | Rear SAM control unit | 133A |
| N22/6 | Rear control unit | 83L |
| N28/1 | Trailer recognition control unit | 127L |
| S62/26 | Trunk lid/liftgate control button | 113L |
| S68/11 | Left rear seat belt buckle switch | 131L |
| S68/12 | Right rear seat belt buckle switch | 129L |
| S88/10 | Trunk lid emergency opening switch | 116L |
| S88/8 | Trunk lid/liftgate external operation switch | 120L |
| U1062 | Valid without code (883) Power closing for doors and trunk lid | 85A |
| U1217 | Valid for model series 217 | 28E |
| U1217 | Valid for model series 217 | 34E |
| U1217 | Valid for model series 217 | 37E |
| U1217 | Valid for model series 217 | 59E |
| U1217 | Valid for model series 217 | 104D |
| U1217 | Valid for model series 217 | 124E |
| U1217 | Valid for model series 217 | 123E |
| U1217 | Valid for model series 217 | 122E |
| U1217 | Valid for model series 217 | 124E |
| U1222 | Valid for model series 222 | 3F |
| U1222 | Valid for model series 222 | 23D |
| U1222 | Valid for model series 222 | 29E |
| U1222 | Valid for model series 222 | 32E |
| U1222 | Valid for model series 222 | 36E |
| U1222 | Valid for model series 222 | 39E |
| U1222 | Valid for model series 222 | 59E |
| U1222 | Valid for model series 222 | 63E |
| U1222 | Valid for model series 222 | 77E |
| U1222 | Valid for model series 222 | 90F |
| U1222 | Valid for model series 222 | 88E |
| U1222 | Valid for model series 222 | 94D |
| U1222 | Valid for model series 222 | 101D |
| U1222 | Valid for model series 222 | 118E |
| U1222 | Valid for model series 222 | 122G |
| U1222 | Valid for model series 222 | 119D |
| U413 | Valid for model 217.3 | 3F |
| U413 | Valid for model 217.3 | 21D |
| U413 | Valid for model 217.3 | 77E |
| U413 | Valid for model 217.3 | 88E |
| U413 | Valid for model 217.3 | 94D |
| U413 | Valid for model 217.3 | 110E |
| U413 | Valid for model 217.3 | 118E |
| U414 | Valid for model 217.4 | 3F |
| U414 | Valid for model 217.4 | 20D |
| U414 | Valid for model 217.4 | 79E |
| U414 | Valid for model 217.4 | 87E |
| U414 | Valid for model 217.4 | 95D |
| U414 | Valid for model 217.4 | 111E |
| U414 | Valid for model 217.4 | 116E |
| U43 | Valid for ECE | 26D |
| U43 | Valid for ECE | 121D |
| W17 | Right rear seat ground point | 3H |
| W17 | Right rear seat ground point | 93L |
| W54 | Right rear wheel well ground point | 25E |
| W54 | Right rear wheel well ground point | 78E |
| W54 | Right rear wheel well ground point | 89E |
| W54 | Right rear wheel well ground point | 118E |
| W54/3 | Left rear wheel well ground point | 3H |
| W54/3 | Left rear wheel well ground point | 112L |
| W6 | Left wheel arch trunk ground point | 48L |
| W6/1 | Left taillamp trunk ground point | 37E |
| W6/1 | Left taillamp trunk ground point | 38E |
| W7 | Right wheelhouse trunk ground point | 67F |
| W7 | Right wheelhouse trunk ground point | 79E |
| W7 | Right wheelhouse trunk ground point | 87E |
| W7/1 | Right taillamp trunk ground point | 20E |
| W7/1 | Right taillamp trunk ground point | 110L |
| W7/1 | Right taillamp trunk ground point | 102H |
| W7/1 | Right taillamp trunk ground point | 99H |
| W7/1 | Right taillamp trunk ground point | 97E |
| W7/1 | Right taillamp trunk ground point | 121H |
| W7/1 | Right taillamp trunk ground point | 117E |
| W90 | Additional brake lamp ground point | 94H |
| X138/6 | Rear center console electrical connector | 62F |
| X138/6 | Rear center console electrical connector | 68F |
| X157/1 | Rear panel ambiance illumination electrical connector | 40F |
| X23/5 | Electrical connector/soft top compartment lid | 96H |
| X35/28 | Rear bumper parking system electrical connector | 90H |
| X35/28 | Rear bumper parking system electrical connector | 105F |
| Z149/2z1 | Center console wiring harness connector sleeve, circuit 58d | 62H |
| Z149z1 | Connector sleeve, cigarette lighter with ashtray illumination, rear | 56H |
| Z1z14 | Circuit 31 connector sleeve | 23G |
| Z1z17 | Circuit 31 connector sleeve | 36G |
| Z1z20 | Circuit 31 connector sleeve | 24G |
| Z1z22 | Circuit 31 connector sleeve | 3E |
| Z1z22 | Circuit 31 connector sleeve | 48H |
| Z1z22 | Circuit 31 connector sleeve | 93G |
| Z1z23 | Circuit 31 connector sleeve | 91E |
| Z1z8 | Circuit 31 connector sleeve | 118G |
| Z1z9 | Circuit 31 connector sleeve | 110G |
| Z232/12z1 | LED K1 ambiance illumination connector sleeve (yellow) | 51H |
| Z232/12z2 | LED K1 ambiance illumination connector sleeve (yellow) | 45H |
| Z232/13z1 | LED K2 ambiance illumination connector sleeve (blue) | 53H |
| Z232/13z2 | LED K2 ambiance illumination connector sleeve (blue) | 46H |
| Z232/14z1 | LED K3 ambiance illumination connector sleeve (red) | 49H |
| Z232/14z2 | LED K3 ambiance illumination connector sleeve (red) | 40H |
| Z232/15z1 | Circuit 31 connector sleeve | 68L |
| Z232/16z1 | Rear passenger compartment center console ambiance illumination connector sleeve (yellow) | 71H |
| Z232/17z1 | Rear passenger compartment center console ambiance illumination connector sleeve (blue) | 72H |
| Z232/18z1 | Rear passenger compartment center console ambiance illumination connector sleeve (red) | 64H |
| Z55/4z1 | Connector sleeve, power supply for ambient and warning lamp in trunk lid | 98E |
| Z6z1 | Circuit 31 connector sleeve | 43L |
| Z75/1z1 | License plate lamp connector sleeve | 107L |
| Z75/1z1 | License plate lamp connector sleeve | 101E |
| Z75/1z2 | License plate lamp connector sleeve | 105G |
