Wiring Diagram, Engine Compartment Pre-Fuse Box (F32/3) - PE54.15-P-2513-97SEB
Model 217, 222 as of model year 2018

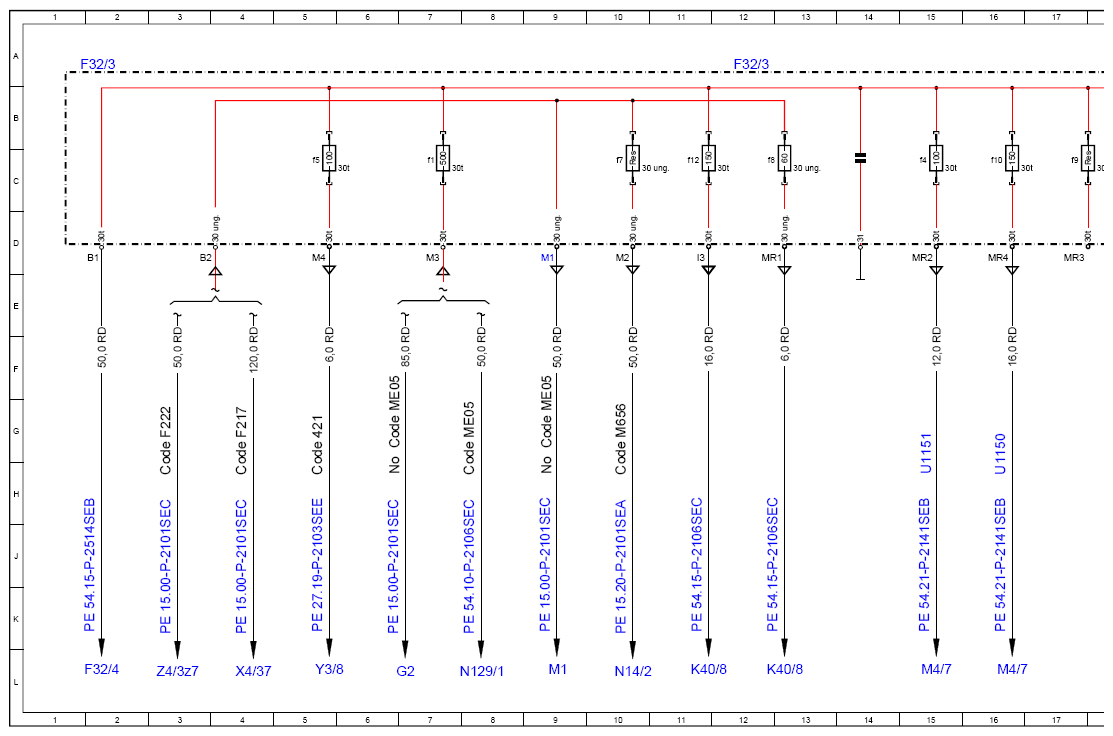

Engine compartment prefuse box F32/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| Code 421 | 9G-TRONIC | 5H |
| Code F217 | MODEL SERIES 217 | 4H |
| Code F222 | MODEL SERIES 222 | 3H |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 10H |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 8H |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 7G |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 9G |
| F32/3 | Engine compartment prefuse box | 2A |
| F32/3 | Engine compartment prefuse box | 12A |
| F32/3 | Engine compartment prefuse box | 20A |
| F32/3f1 | Fuse 1 | 7C |
| F32/3f10 | Fuse 10 | 16C |
| F32/3f11 | Fuse 11 | 21C |
| F32/3f12 | Fuse 12 | 11C |
| F32/3f3 | Fuse 3 | 18C |
| F32/3f4 | Fuse 4 | 15C |
| F32/3f5 | Fuse 5 | 5C |
| F32/3f6 | Fuse 6 | 20C |
| F32/3f7 | Fuse 7 | 10C |
| F32/3f8 | Fuse 8 | 12C |
| F32/3f9 | Fuse 9 | 17C |
| F32/4 | Vehicle interior prefuse box | 2L |
| G2 | Alternator | 7L |
| K40/8 | Engine fuse and relay module | 13L |
| K40/8 | Engine fuse and relay module | 11L |
| M1 | Starter | 9L |
| M4/7 | Fan motor | 15L |
| M4/7 | Fan motor | 16L |
| N129/1 | Power electronics control unit | 8L |
| N14/2 | Glow output stage | 10L |
| N68 | Electrical power steering control unit | 19L |
| U1150 | Valid for fan motor 1000W | 16H |
| U1151 | Not valid for fan motor 1000W | 15H |
| X4/37 | Left terminal 30 terminal block (without backup) | 4L |
| Y3/8 | Fully integrated transmission control control unit | 5L |
| Z4/3z7 | Tml. 30 connector sleeve | 3L |
