Fuse Assignment On Interior Pre-Fuse Box - GF54.15-P-1256-26LF

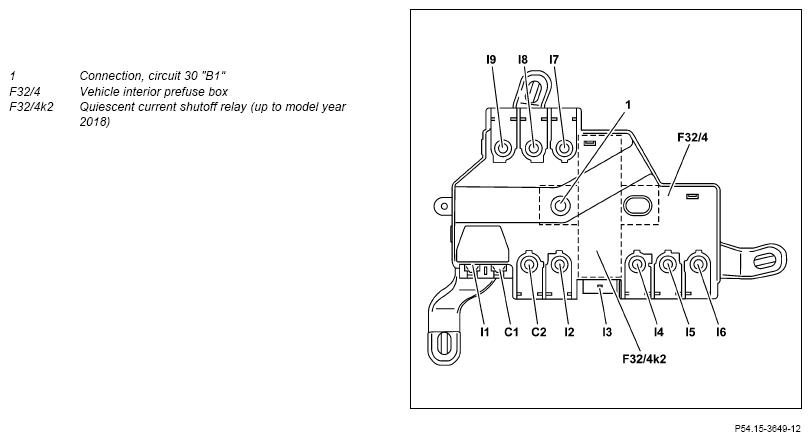

Model 217, 222
| Connection | Fuse Identification | Circuit | Wire identification | Fused component | Fuse rating (A) |
|---|---|---|---|---|---|
| I7 | Electrical fuse 21 (F32/4f21) | 30 | 27.0 RD | Right A-pillar fuse box (F1/3) | 125 |
| I2 | Electrical fuse 22 (F32/4f22) | 30 | 16.0 RD | Left fuse and relay module (K40/6) | 125 |
| C2 | Electrical fuse 23 (F32/4f23) | 30 | - | Spare | - |
| I8 | Electrical fuse 24 (F32/4f24) | 30 | - | Spare | - |
| I9 | Electrical fuse 25 (F32/4f25) | 30 | - | Spare | - |
| I3 | - | - | - | Up to model year 2018: No-load current shutoff relay connection (F32/4k2) |
- |
| C1 | Electrical fuse 27 (F32/4f27) | 30 | 4.0 RD | Blower regulator (A32n1) | 40 |
| I1 | Electrical fuse 28 (F32/4f28) | 30 | 4.0 RD | Electronic Stability Program control unit (N30/4) | 40 |
| I4 | Electrical fuse 29 (F32/4f29) | - | - | Spare | - |
| I6 | Electrical fuse 30 (F32/4f30) | 30g | 10.0 RD | Up to model year 2018: Rear fuse and relay module (K40/5) |
60 |
| 30 | 6.0 RD | As of model year 2018: Electronic Stability Program control unit (N30/4) |
|||
| I5 | Electrical fuse 31 (F32/4f31) | 30g | 10.0 RD | Right A-pillar fuse box (F1/3) | 60 |
