Fuse Assignment Of Rear Pre-Fuse Box - GF54.15-P-1256-08LF
Model 217, 222

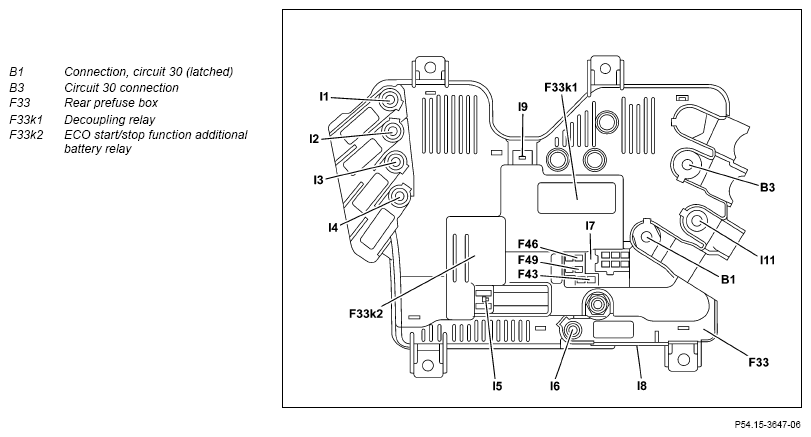

Shown up to model year 2018
| Connection | Fuse Identification | Circuit | Line ID (line fused) | Fused function | Rating in amperes (A) |
|---|---|---|---|---|---|
| I3 | Electrical fuse 41 (F33f41) | 30 | 16.0 RD | Model 222 with code Z07 (Highest protection): Special protection vehicle fuse box (F16) |
150 |
| I2 | Electrical fuse 42 (F33f42) | 30 | 16.0 RD | With code 597 (Windshield, heated): Windshield heater control unit (N61) |
125 |
| I7 | Electrical fuse 43 (F33f43) | 30c | 1.0 RD | Model 222.004/057/104/157/163/173: High-voltage disconnect device (S7) As of model year 2018 with code B01 (48V technology): Circuit 30c end sleeve (Z241z1) |
7.5 |
| I4 | Electrical fuse 44 (F33f44) | 30 | 27.0 RD | Up to model year 2018: Rear fuse and relay module (K40/5) |
150 |
| I6 | Electrical fuse 45 (F33f45) | 30 | 25.0 RD | ECO start/stop function additional battery (G1/13) | 200 |
| I7 | Electrical fuse 46 (F33f46) | 30 | 0.75 RD | Front SAM control unit (N10/6) Electronic ignition lock control unit (N73) |
10 |
| I1 | Electrical fuse 47 (F33f47) | 30 | 16.0 RD | As of model year 2018: Rear fuse and relay module (K40/5) |
80 |
| I11 | Electrical fuse 48 (F33f48) | 30 | 50.0 RD | Up to model year 2018, model 222.163: DC/DC converter control unit (N83/1) |
400 |
| As of model year 2018, model 222.173: Power electronics control unit (N129/1) |
|||||
| I7 | Electrical fuse 49 (F33f49) | 30 | 0.75 RD | Front SAM control unit (N10/6) | 10 |
| I5 | - | - | - | ECO start/stop function auxiliary battery relay contact (F33k2) | - |
| I8 | Electrical fuse 51 (F33f51) | 30c | - | Model 222.004/057/104/157/163/173 or as of model year with code B01 (48V technology): High-voltage pyrofuse (F33f51) triggered by Supplemental Restraint System control unit (N2/10) |
- |
| I9 | Electrical fuse 52 (F33f52) | - | - | Decoupling relay contact (F33k1) | - |
| I14 | Low-voltage pyrofuse (F33f53) | 30 | - | Spare | - |
| Low-voltage pyrofuse (F33f54) | 30 | - | Model 222 with code Z07 (Highest protection): Special-purpose vehicle fuse block 1 (F80/1) |
15 | |
| I12 | - | 30 | 4.0 RD | As of model year 2018: Passenger-side A-pillar fuse box (F1/3) |
40 |
| I13 | - | - | - | As of model year 2018: Battery disconnect switch relay contact (F33k3) |
- |

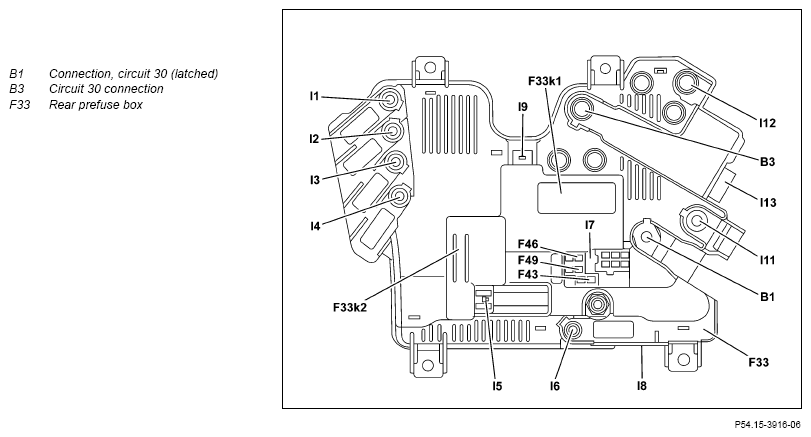

Shown as of model year 2018
| Connection | Fuse Identification | Circuit | Line ID (line fused) | Fused function | Rating in amperes (A) |
|---|---|---|---|---|---|
| I3 | Electrical fuse 41 (F33f41) | 30 | 16.0 RD | Model 222 with code Z07 (Highest protection): Special protection vehicle fuse box (F16) |
150 |
| I2 | Electrical fuse 42 (F33f42) | 30 | 16.0 RD | With code 597 (Windshield, heated): Windshield heater control unit (N61) |
125 |
| I7 | Electrical fuse 43 (F33f43) | 30c | 1.0 RD | Model 222.004/057/104/157/163/173: High-voltage disconnect device (S7) As of model year 2018 with code B01 (48V technology): Circuit 30c end sleeve (Z241z1) |
7.5 |
| I4 | Electrical fuse 44 (F33f44) | 30 | 27.0 RD | Up to model year 2018: Rear fuse and relay module (K40/5) |
150 |
| I6 | Electrical fuse 45 (F33f45) | 30 | 25.0 RD | ECO start/stop function additional battery (G1/13) | 200 |
| I7 | Electrical fuse 46 (F33f46) | 30 | 0.75 RD | Front SAM control unit (N10/6) Electronic ignition lock control unit (N73) |
10 |
| I1 | Electrical fuse 47 (F33f47) | 30 | 16.0 RD | As of model year 2018: Rear fuse and relay module (K40/5) |
80 |
| I11 | Electrical fuse 48 (F33f48) | 30 | 50.0 RD | Up to model year 2018, model 222.163: DC/DC converter control unit (N83/1) |
400 |
| As of model year 2018, model 222.173: Power electronics control unit (N129/1) |
|||||
| I7 | Electrical fuse 49 (F33f49) | 30 | 0.75 RD | Front SAM control unit (N10/6) | 10 |
| I5 | - | - | - | ECO start/stop function auxiliary battery relay contact (F33k2) | - |
| I8 | Electrical fuse 51 (F33f51) | 30c | - | Model 222.004/057/104/157/163/173 or as of model year with code B01 (48V technology): High-voltage pyrofuse (F33f51) triggered by Supplemental Restraint System control unit (N2/10) |
- |
| I9 | Electrical fuse 52 (F33f52) | - | - | Decoupling relay contact (F33k1) | - |
| I14 | Low-voltage pyrofuse (F33f53) | 30 | - | Spare | - |
| Low-voltage pyrofuse (F33f54) | 30 | - | Model 222 with code Z07 (Highest protection): Special-purpose vehicle fuse block 1 (F80/1) |
15 | |
| I12 | - | 30 | 4.0 RD | As of model year 2018: Passenger-side A-pillar fuse box (F1/3) |
40 |
| I13 | - | - | - | As of model year 2018: Battery disconnect switch relay contact (F33k3) |
- |
