Loosen/Tighten Screws/Bolts On Oil Cooler Of Automatic Transmission - AR27.55-P-0003-01EWO
Transmission 725.1 (except 725.103/151/164)
AUTOMATIC TRANSMISSION COMPLETE
| Number |
Designation |
Transmission 725.1 |
| BA27.10-P-1031-04H |
Bolt, oil cooler to transmission |
M6 |
Stage 1 |
Nm |
5 |
| Stage 2 |
Nm |
10 |

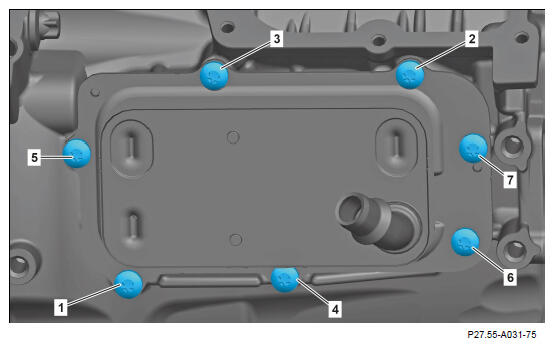

- Loosen screws (1 to 7) in reverse numerical order
- Tighten screws (1 to 7) in numerical order.
 Courtesy of MERCEDES-BENZ USA
|
