Repair Supply Line Connection For Air Suspension - AR32.22-P-2001-01S

Model 223, 296, 297

Model 294, 295

with code 489 (AIRMATIC Dual Control/semi-active air suspension)

10.05.2022	Pressure line air suspension to front spring strut	Model 296	BA32.25-P-1003-04O
10.05.2022	Pressure line air suspension to rear air spring	Model 296	BA32.25-P-1006-04O

Number	Designation		Model 294	Model 295
BA32.22-P-1004-03K	Compressed air lines to electropneumatic controller unit	Nm	4	4

Number	Designation		Model 296	Model 297
BA32.22-P-1004-03K	Compressed air lines to electropneumatic controller unit	Nm	4	4

Number	Designation		Model 223
BA32.22-P-1006-03F	Pressure line to air compressor/valve block	Nm	3, 5

Number	Designation		Model 223
BA32.22-P-1010-03F	Pressure line to front suspension strut/valve block	Nm	2

Number	Designation		Model 223
BA32.22-P-1011-03F	Pressure line to rear suspension strut/valve block	Nm	2

Number	Designation		Model 294	Model 295
BA32.25-P-1003-04O	Air suspension pressure line at suspension strut at front	Nm	2	2

Number	Designation		Model 296	Model 297
BA32.25-P-1003-04O	Air suspension pressure line at suspension strut at front	Nm	2	2

Number	Designation		Model 294	Model 295
BA32.25-P-1006-04O	Air suspension pressure line to rear air spring	Nm	2	2

Number	Designation		Model 296	Model 297
BA32.25-P-1006-04O	Air suspension pressure line to rear air spring	Nm	2	2

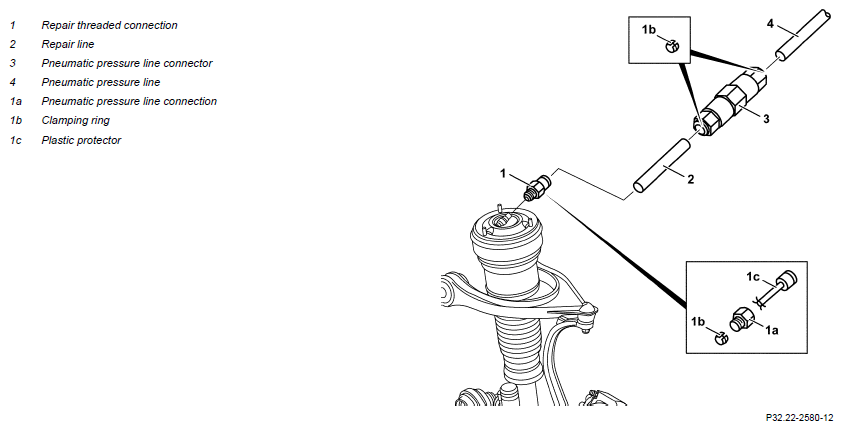

Shown on front suspension strut

Courtesy of MERCEDES-BENZ USA

Make sure that the repair work is performed carefully.

Otherwise renewed leaks may occur.

In the event of damage to pneumatic pressure line connections (1a) and pneumatic pressure lines (4), a pneumatic pressure line connector (3) or a repair screwed connection (1) can be mounted.

1. Unscrew pneumatic pressure line connection (1a) from the affected component part (e.g. air suspension bellows).

   Do not kink pneumatic pressure line (4) and repair line (2).

   Otherwise pneumatic pressure line (4) or repair line (2) may be damaged.

   A repair line (2) with a straight and a curved section is available as replacement part.

   Depending on the size and accessibility of the repair threaded connection (1) use box wrench bit (001 589 00 03 00), the box wrench bit (000 589 75 03 00) or the socket wrench socket (211 589 00 09 00).

2. Cut off pneumatic pressure line (4) at a suitable point using a cutter .

   Special care must be taken to ensure that the cut is made exactly at right angles on pneumatic pressure line (4).

   Otherwise pneumatic pressure line (4) may suffer more leaks.

3. Insert pneumatic pressure line (4) into pneumatic pressure line connector (3) up to the end stop or to at least 19.5 mm.
4. Pull back pneumatic pressure line (4) slightly, to enable the surrounding retaining edges inside clamping ring (1b) to engage in the outer surface of pneumatic pressure line (4).
5. Cut repair line (2) so that the original length and form (straight end or 90° curved section) of the pneumatic pressure line (4) being repaired is achieved again.

   When cutting repair line (2) take into account the insertion depths in repair screwed connection (1) and pneumatic pressure line connector (3).

   Leaks can occur otherwise.

   Special care must be taken to ensure that the cut is exactly at right angles to the repair line (2).

   Otherwise renewed leaks may occur.

6. Insert repair line (2) into pneumatic pressure line connector (3) up to the end stop or to at least 19.5 mm.
7. Pull back repair line (2) slightly, to enable the surrounding retaining edges inside the clamping ring (1b) to engage in the outer surface of the repair line (2).
8. Screw repair connection (1) into the affected component.

   Air suspension pressure line to rear air spring, Model 223



   Air suspension pressure line to compressor, Model 223



   Air suspension pressure line to front air spring, Model 223



   Compressed-air lines to electropneumatic controller unit, Model 294, 295

   with code 489 (AIRMATIC Dual Control/semi-active air

   suspension)

   Model 296

   Model 297



   Air suspension pressure line to front suspension strut, Model

   294, 295

   with code 489 (AIRMATIC Dual Control/semi-active air

   suspension)

   Model 296

   Model 297



   Air suspension pressure line to rear air spring, Model 294, 295 with code 489 (AIRMATIC Dual Control/semi-active air suspension)

   Model 296

   Model 297



9. Pull plastic guard (1c) out of repair connection (1).
10. Insert repair line (2) into repair threaded connection (1) up to end stop or to at least to 19.5 mm.
11. Pull back repair line (2) slightly, to enable the surrounding retaining edges inside the clamping ring (1b) to engage in the outer surface of the repair line (2).
12. Route pneumatic pressure line (4) on vehicle.

    When pulling in or routing pneumatic pressure line (4) on the vehicle make sure that pneumatic pressure line (4) cannot be twisted once fastened.

    A twisted pneumatic pressure line (4) can be damaged and consequently be leaky.
