Pressing Out And Drawing In Rear Axle Shaft At Rear Axle Shaft Flange - AR35.30-P-0115-03LF

Model 192, 205, 206, 214, 217, 222, 223, 232, 236, 253, 254, 294, 295, 296, 297

Notes on safety-relevant components

AH0000-Z-0019-01A

Fig 1: Identifying Extraction And Insertion Tool (210 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Bracket (210 589 01 40 00)

Courtesy of MERCEDES-BENZ USA

Press out

Attach extraction and insertion tool to rear axle shaft flange.
Screw on nut onto threaded pin.
Screw in threaded pin into threaded rod of extraction and insertion tool and tighten.
Push out rear axle shaft (37) using extraction and insertion tool and then remove.

Courtesy of MERCEDES-BENZ USA

Inserting

On rear axle shafts (37) which are glued in before installation, clean the rear axle's (37) splined shaft profile and the rear axle shaft flange mechanically.

In the event of sluggishness, is thread M8 should be cut into the rear axle shaft (37), to then draw this in using the extraction and insertion tool.

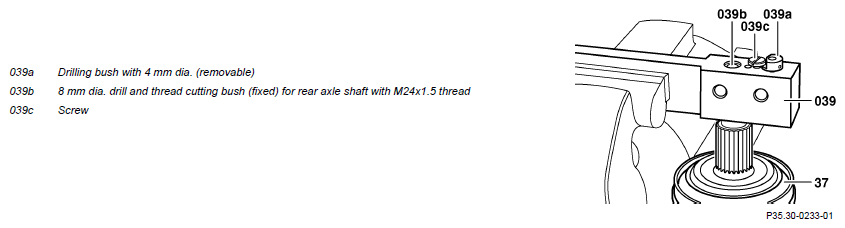

Screw holder (039) onto shaft journal of rear axle shaft (37) and clamp into vise.
Insert drill bush with Ø 4 mm (detachable) (039a) and lock in place using bolt (039c).
Shown on rear axle shaft with M24x1.5 thread

Courtesy of MERCEDES-BENZ USA

Shown on rear axle shaft with M24x1.5 thread

Courtesy of MERCEDES-BENZ USA
Drill core hole bore to a depth of approx. 20 mm using a 4 mm dia. drill bit (dimension a), cooling and lubricating the drill bit in the process.
Remove drill bush with Ø 4 mm (detachable) (039a) with bolt (039c).
Drill core hole bore to a depth of approx. 20 mm using a 6.8 mm dia. drill bit (dimension a), cooling and lubricating the drill bit in the process.
Precut thread M8 using a thread tap of stage 1 and 2.

Courtesy of MERCEDES-BENZ USA
Unscrew bracket (039) from rear axle shaft (37) and clamp in rear axle shaft (37) into vise.
Finish cutting thread M8 with thread tap of stage 3.
Draw the rear axle shaft (37) using extraction and insertion tool into the rear axle shaft flange.
Detach extraction and insertion tool from rear axle shaft flange.

Courtesy of MERCEDES-BENZ USA
