Remove/Install Steering Coupling - AR46.10-P-8000S
Model 223
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove voltage of high-voltage on-board electrical system. | Model 223 with engine 256 with code ME10 (Hybrid vehicle (plug-in, PHEV)) |
|
| AR47.70-P-1000SE | |||
| 2 | Deactivate easy entry and exit feature for steering wheel. | Model 223 with code 275 (Memory Package (driver's seat, steering column and mirror)) |
|

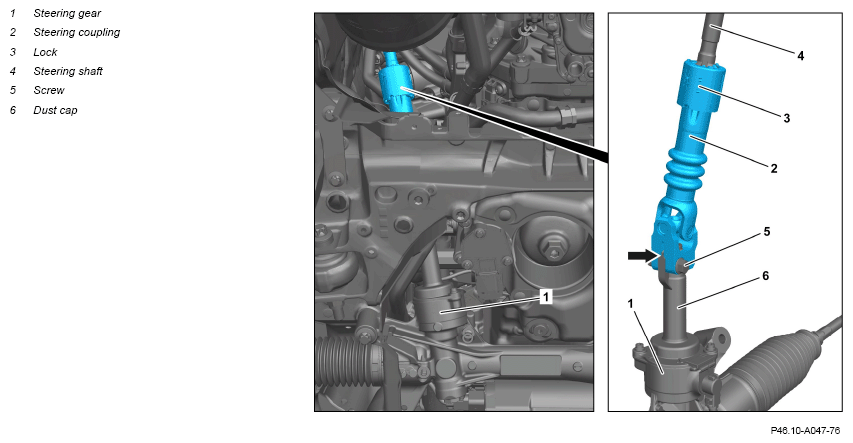

| 3 | Turn steering gear (1) to center position (front wheels in straight-ahead position) and fix steering wheel in place using holding device. | Do not turn steering wheel when steering coupling (2) is removed. Otherwise the clock spring contact will be destroyed. |
AR46.20-P-0500-01S |
| Fig 3 | |||
| 4 | Remove center and rear section of engine compartment lining. | AR61.20-P-1105S | |
| 5 | Disconnect steering coupling (2) on lock (3) from steering shaft (4). | Disconnect and connect steering coupling (2). | AR46.10-P-8000-01LW |
| Move steering gear (1) to center position. |
AR46.20-P-0500-01S | ||
| Fig 2 | |||
| 6 | Remove screw (5) from steering coupling (2). | *BA46.10-P-1002-01M | |
| 7 | Remove steering coupling (2) from steering gear (1). | ||
| 8 | Install in the reverse order. |
STEERING SHAFT
| Number | Designation | Model 223 | |
|---|---|---|---|
| BA46.10-P-1002-01M | Bolt, steering coupling to rack-and-pinion steering | Nm | 24 |
