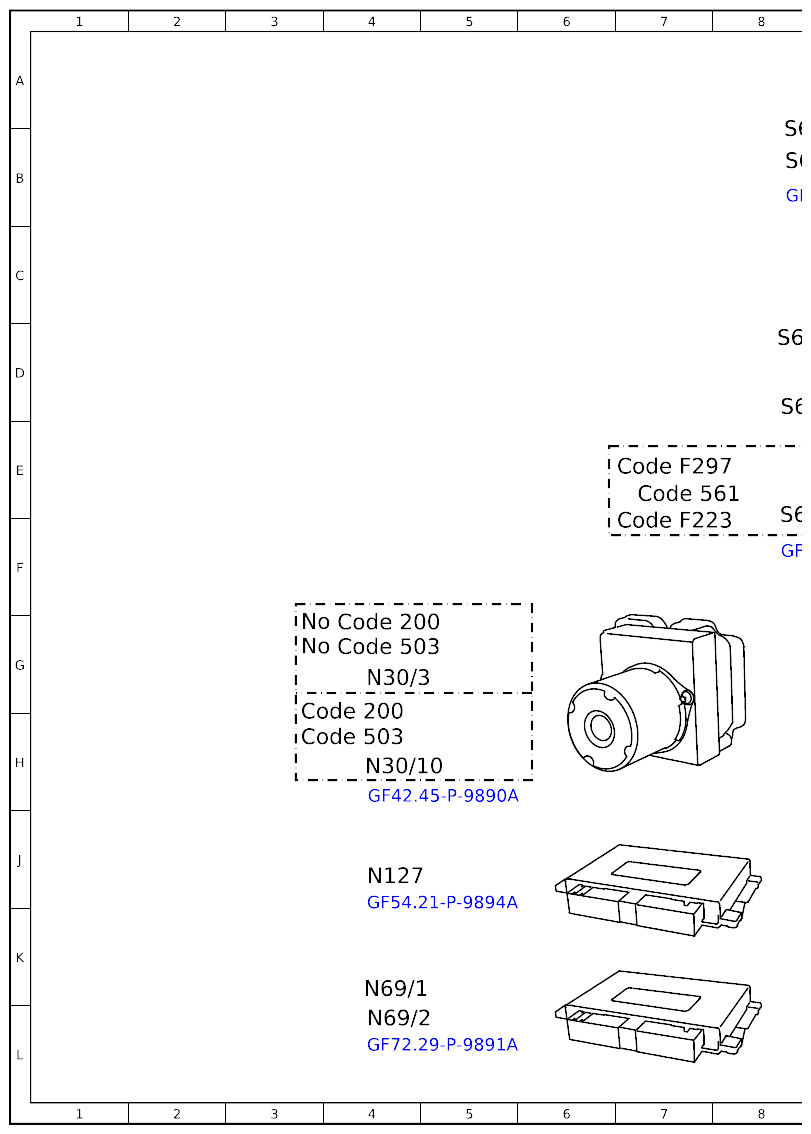

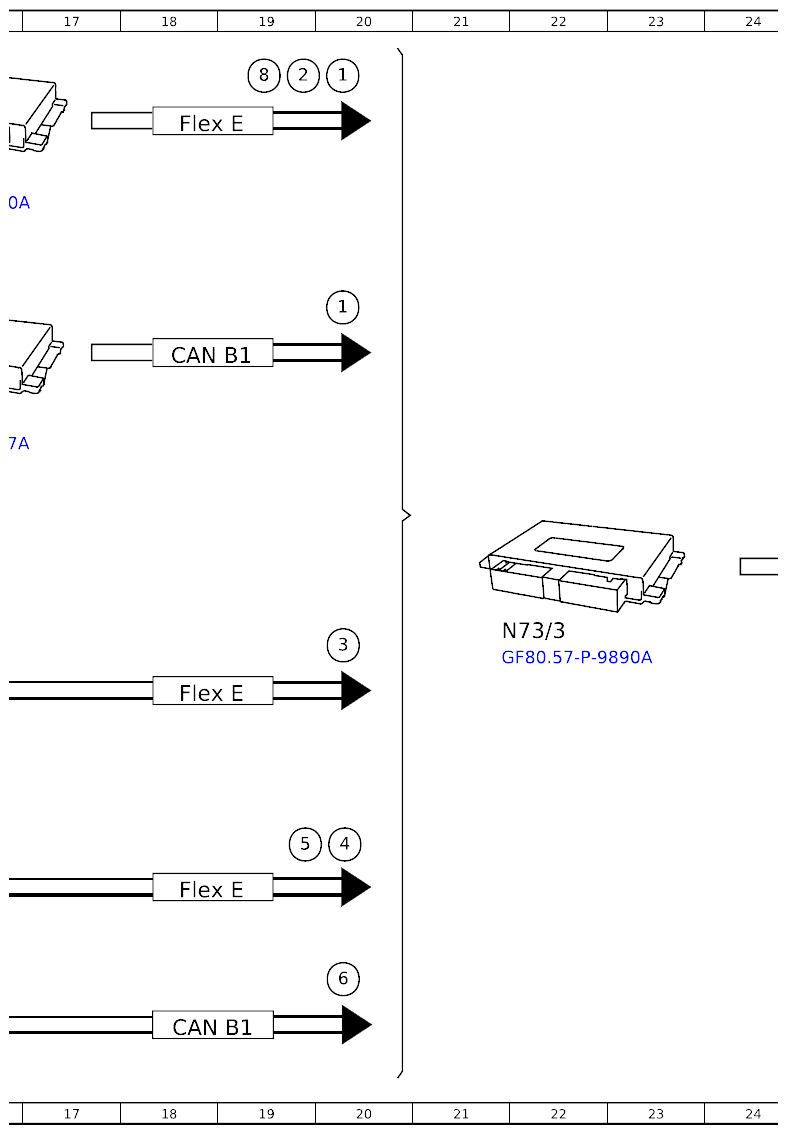

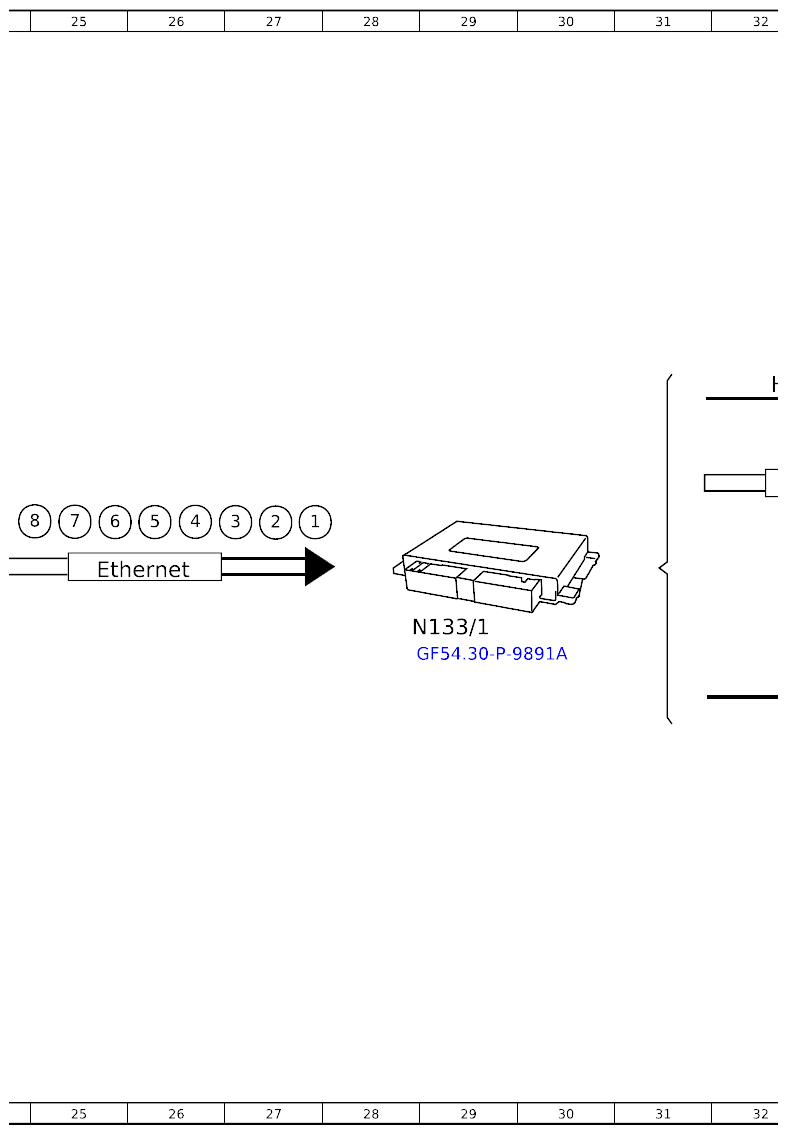

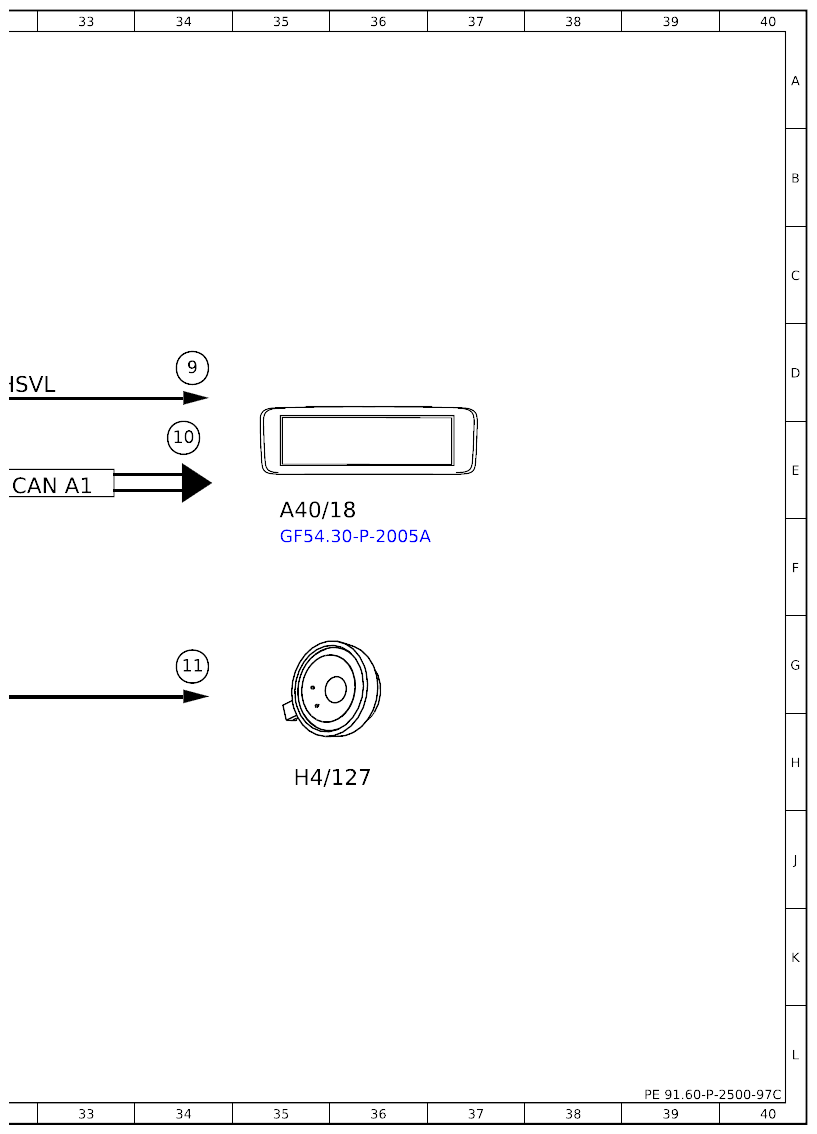

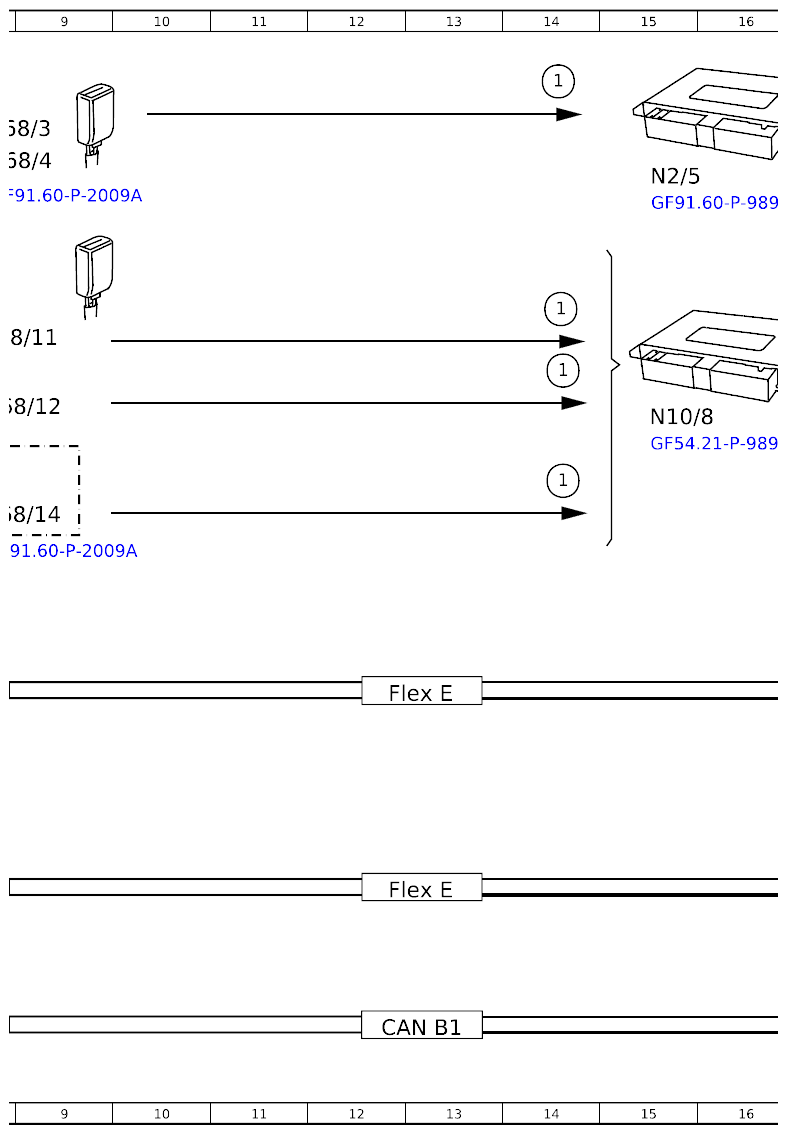

Function Schematic, Output Seat Belt Warning - PE91.60-P-2500-97C
Model 223, 297
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat belt buckle switch, status | 14A |
| 1 | Seat belt buckle switch, status | 27F |
| 1 | Seat belt buckle switch, status | 14E |
| 1 | Seat belt buckle switch, status | 14C |
| 1 | Seat belt buckle switch, status | 14D |
| 1 | Seat belt buckle switch, status | 20C |
| 1 | Seat belt buckle switch, status | 20A |
| 10 | Instrument cluster warning message, actuation | 34E |
| 11 | Speaker, actuation | 34G |
| 2 | Front passenger seat occupied recognition, status | 19A |
| 2 | Front passenger seat occupied recognition, status | 27F |
| 3 | Vehicle speed, signal | 27F |
| 3 | Vehicle speed, signal | 20G |
| 4 | Engine running, signal | 20J |
| 4 | Engine running, signal | 26F |
| 5 | Drivetrain operational, signal | 19J |
| 5 | Drivetrain operational, signal | 26F |
| 6 | Door rotary tumbler switch, status | 20K |
| 6 | Door rotary tumbler switch, status | 25F |
| 7 | Circuit 15, status | 25F |
| 8 | Instrument cluster warning message, request | 25F |
| 8 | Instrument cluster warning message, request | 19A |
| 9 | Image data, signal | 34D |
| A40/18 | Instrument cluster display | 35E |
| CAN A1 | CAN 1 for telematics | 32E |
| CAN B1 | CAN 1 for vehicle interior | 13L |
| CAN B1 | CAN 1 for vehicle interior | 18L |
| CAN B1 | CAN 1 for vehicle interior | 18D |
| Code 200 | Conditionally automated driving | 3H |
| Code 200 | Conditionally automated driving | 4G |
| Code 503 | Remote-controlled parking | 4G |
| Code 503 | Remote-controlled parking | 3H |
| Code 561 | Design seat belt buckles | 7E |
| Code F223 | Model series 223 | 7F |
| Code F297 | Model series 297 | 7E |
| Ethernet | Ethernet | 25F |
| Flex E | Chassis FlexRay | 13G |
| Flex E | Chassis FlexRay | 18G |
| Flex E | Chassis FlexRay | 18B |
| Flex E | Chassis FlexRay | 13J |
| Flex E | Chassis FlexRay | 18J |
| H4/127 | Instrument panel mid-range speaker | 35H |
| HSVL | High-speed video link | 32D |
| N10/8 | Rear signal acquisition and actuation module control unit | 15E |
| N127 | Drivetrain control unit | 4J |
| N133/1 | Instrument cluster control unit | 29G |
| N2/5 | Supplemental restraint system control unit | 15B |
| N30/10 | Electronic Stability Program control unit | 4H |
| N30/3 | Electronic Stability Program control unit | 4G |
| N69/1 | Left front door control unit | 4K |
| N69/2 | Right front door control unit | 4L |
| N73/3 | Electronic ignition switch control unit | 22G |
| S68/11 | Left rear seat belt buckle switch | 8D |
| S68/12 | Right rear seat belt buckle switch | 8D |
| S68/14 | Center rear seat belt buckle switch | 8F |
| S68/3 | Driver seat belt buckle switch | 8B |
| S68/4 | Front passenger seat belt buckle switch | 8B |
