Function Schematic For Switching On Rear Seat Ventilation - PE91.30-P-2504-97C
Model 214, 223
with code 402 (Rear seat climate control)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat climate control switch group, status | 9A |
| 1 | Seat climate control switch group, status | 9C |
| 2 | Seat ventilation, request | 15B |
| 2 | Seat ventilation, request | 15E |
| 2 | Seat ventilation, request | 21E |
| 3 | Vehicle speed, signal | 15H |
| 3 | Vehicle speed, signal | 9H |
| 3 | Vehicle speed, signal | 21E |
| 4 | Circuit 15, status | 15H |
| 4 | Circuit 15, status | 20E |
| 5 | Crash, signal | 9K |
| 5 | Crash, signal | 14H |
| 5 | Crash, signal | 20E |

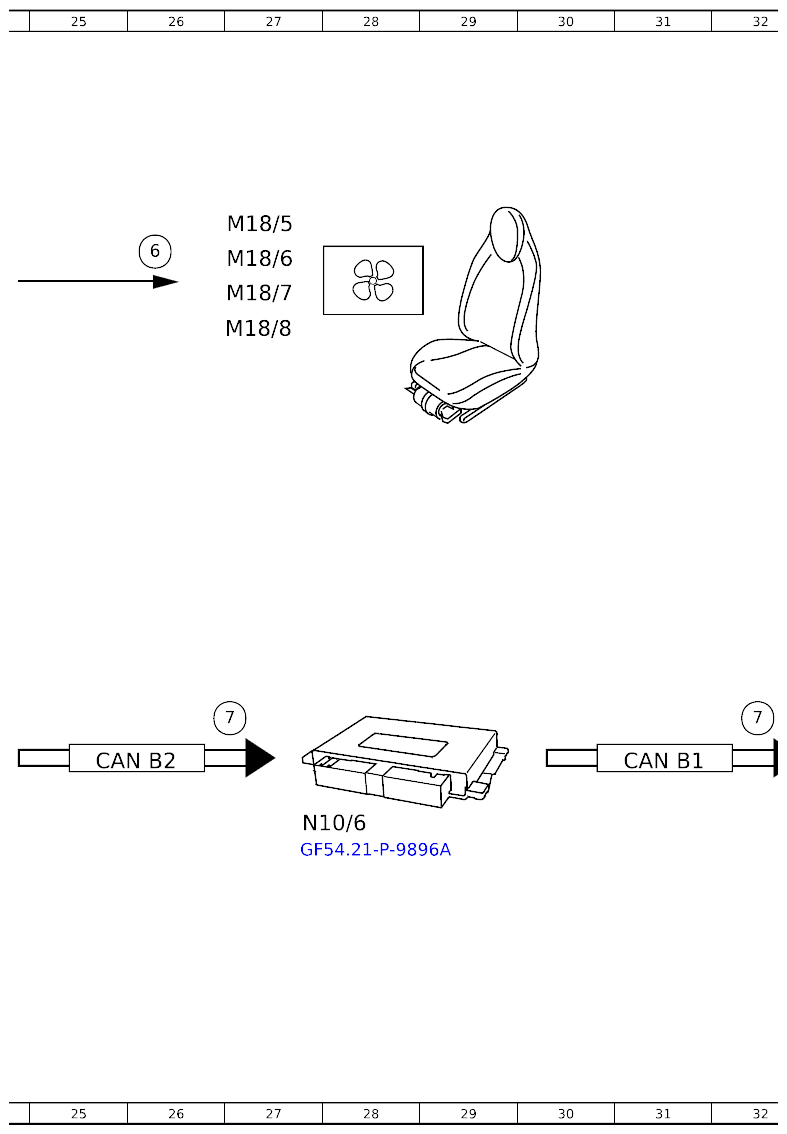

| 6 | Seat ventilation motors, actuation | 26C |
| 7 | Seat ventilation, status | 38H |
| 7 | Seat ventilation, status | 38F |
| 7 | Seat ventilation, status | 32H |
| 7 | Seat ventilation, status | 27H |
| A26/17 | Head unit | 1F |
| CAN B1 | CAN 1 for vehicle interior | 14C |
| CAN B1 | CAN 1 for vehicle interior | 31H |
| CAN B2 | CAN 2 for vehicle interior | 20F |
| CAN B2 | CAN 2 for vehicle interior | 25H |
| Code 200 | Conditionally automated driving | 2G |
| Code 200 | Conditionally automated driving | 1J |
| Code 503 | Pre-installation for Remote Parking Pilot | 2G |
| Code 503 | Pre-installation for Remote Parking Pilot | 1J |
| Code F214 | Model series 214 | 1F |
| Code F223 | Model series 223 | 1H |
| Code F223 | Model series 223 | 1G |
| Ethernet | Ethernet | 10F |
| Ethernet | Ethernet | 14H |
| Flex E | Chassis FlexRay | 8H |
| Flex E | Chassis FlexRay | 8K |
| LIN | Local Interconnect Network | 7B |
| LIN | Local Interconnect Network | 7C |
| LIN | Local Interconnect Network | 37H |
| LIN | Local Interconnect Network | 37G |
| M18/5 | Left rear seat backrest ventilation motors | 27C |
| M18/6 | Left rear seat cushion ventilation motors | 27C |
| M18/7 | Left rear seat backrest ventilation motors | 27C |
| M18/8 | Left rear seat cushion ventilation motors | 26D |
| N10/6 | Front SAM control unit | 16F |
| N10/6 | Front SAM control unit | 27J |
| N2/5 | Supplemental restraint system control unit | 1K |
| N30/10 | Electronic Stability Program control unit | 2J |
| N30/3 | Electronic Stability Program control unit | 2H |

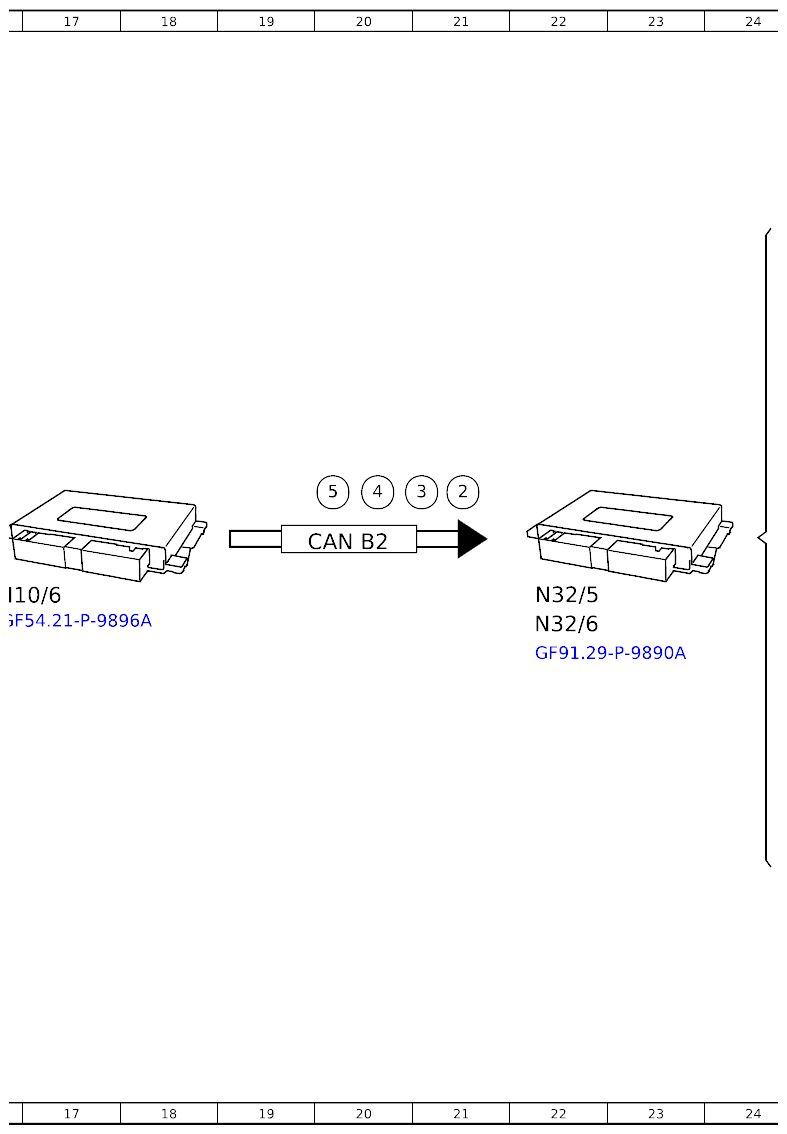

| N32/5 | Left rear seat control unit | 22F |
| N32/6 | Left rear seat control unit | 22G |

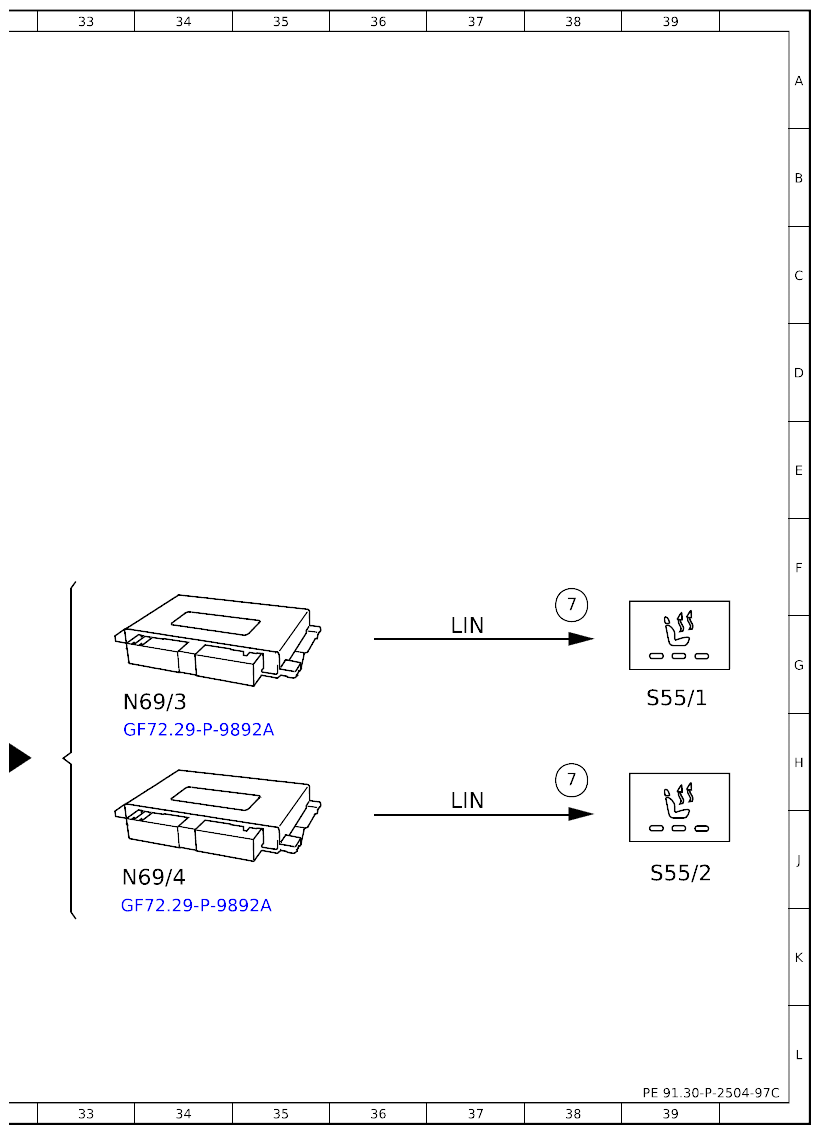

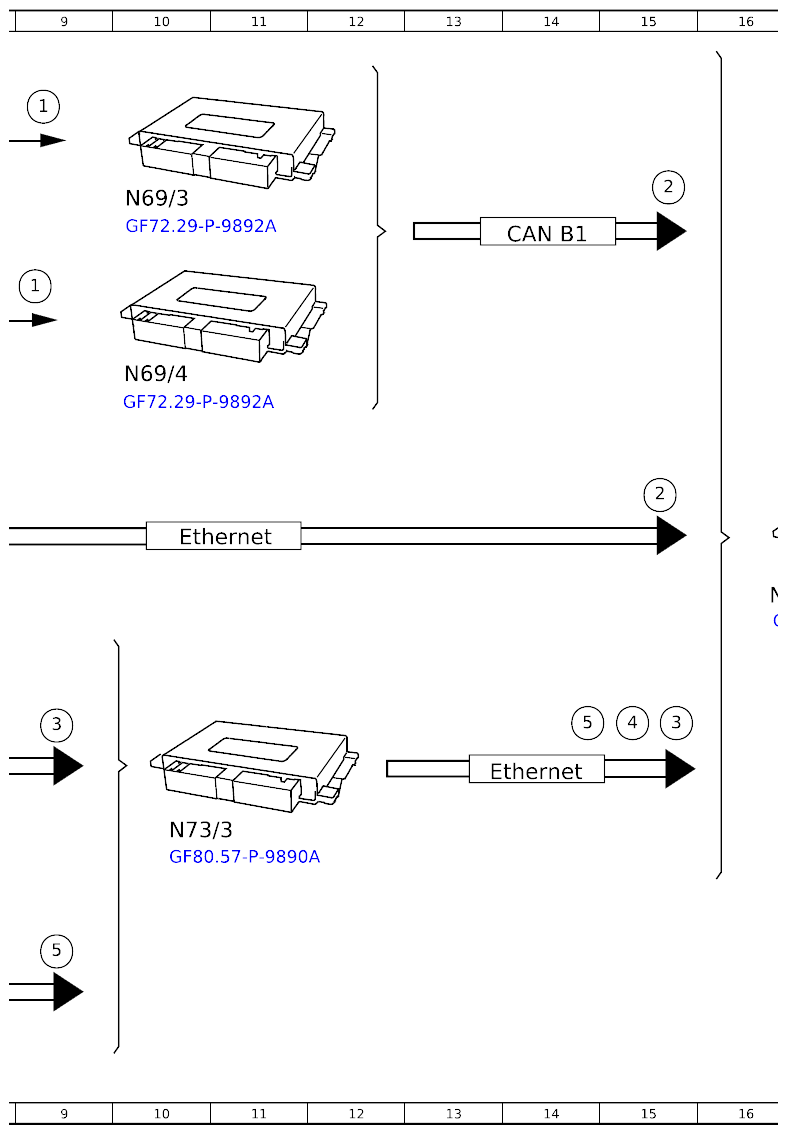

| N69/3 | Left rear door control unit | 10B |
| N69/3 | Left rear door control unit | 33G |
| N69/4 | Right rear door control unit | 10D |
| N69/4 | Right rear door control unit | 33J |
| N73/3 | Electronic ignition switch control unit | 10J |

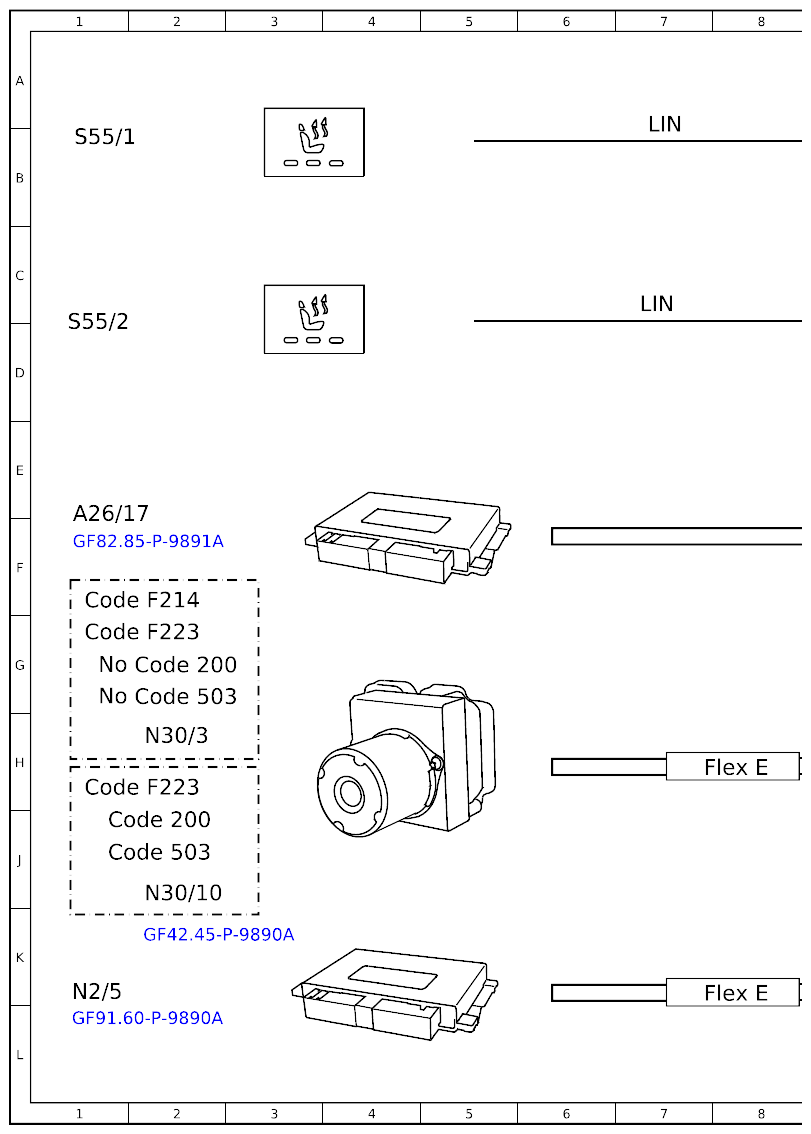

| S55/1 | Left rear seat adjustment switch group | 1B |
| S55/1 | Left rear seat adjustment switch group | 39G |
| S55/2 | Right rear seat adjustment switch group | 1D |
| S55/2 | Right rear seat adjustment switch group | 39J |
