Function Schematic For Actuating Front Seat Ventilation - PE91.30-P-2501-97E
Model 223 with code 401 (Climatised front seats)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat climate control switch group, status | 8A |
| 1 | Seat climate control switch group, status | 8C |
| 2 | Seat ventilation, request | 15C |
| 2 | Seat ventilation, request | 15D |
| 2 | Seat ventilation, request | 21E |
| 3 | Vehicle speed, signal | 15G |
| 3 | Vehicle speed, signal | 9G |
| 3 | Vehicle speed, signal | 21F |
| 4 | Circuit 15, status | 14G |
| 4 | Circuit 15, status | 20E |
| 5 | Crash, signal | 8J |
| 5 | Crash, signal | 14G |
| 5 | Crash, signal | 20E |
| 6 | Seat ventilation motors, actuation | 27C |
| 7 | Seat ventilation, status | 32H |
| 7 | Seat ventilation, status | 38C |
| 7 | Seat ventilation, status | 38F |
| 7 | Seat ventilation, status | 27H |
| A26/17 | Head unit | 1E |
| CAN B1 | CAN 1 for vehicle interior | 13C |
| CAN B1 | CAN 1 for vehicle interior | 31H |

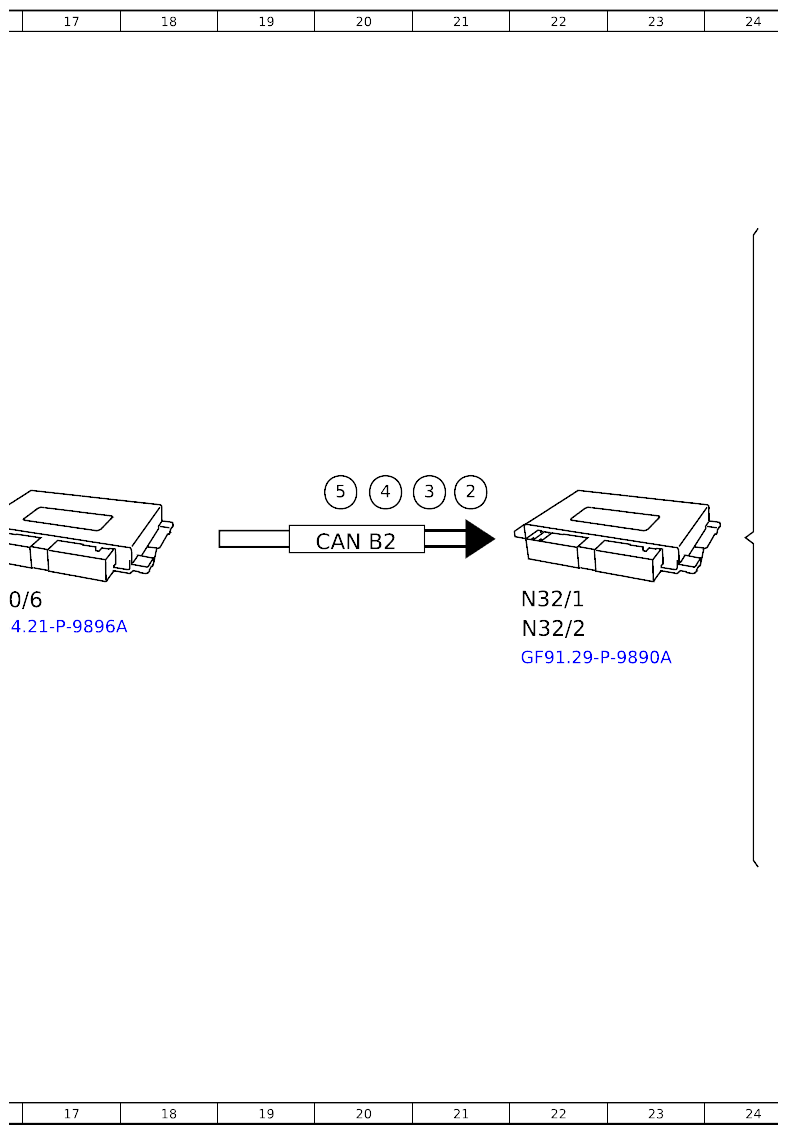

| CAN B2 | CAN 2 for vehicle interior | 20F |
| CAN B2 | CAN 2 for vehicle interior | 26H |
| Code 200 | Conditionally automated driving | 2H |
| Code 200 | Conditionally automated driving | 2G |
| Code 503 | Remote-controlled parking | 2G |
| Code 503 | Remote-controlled parking | 2H |
| Ethernet | Ethernet | 10E |
| Ethernet | Ethernet | 13H |
| Flex E | Chassis FlexRay | 7H |
| Flex E | Chassis FlexRay | 7K |
| LIN | Local Interconnect Network | 6A |
| LIN | Local Interconnect Network | 6C |
| LIN | Local Interconnect Network | 37H |
| LIN | Local Interconnect Network | 37G |

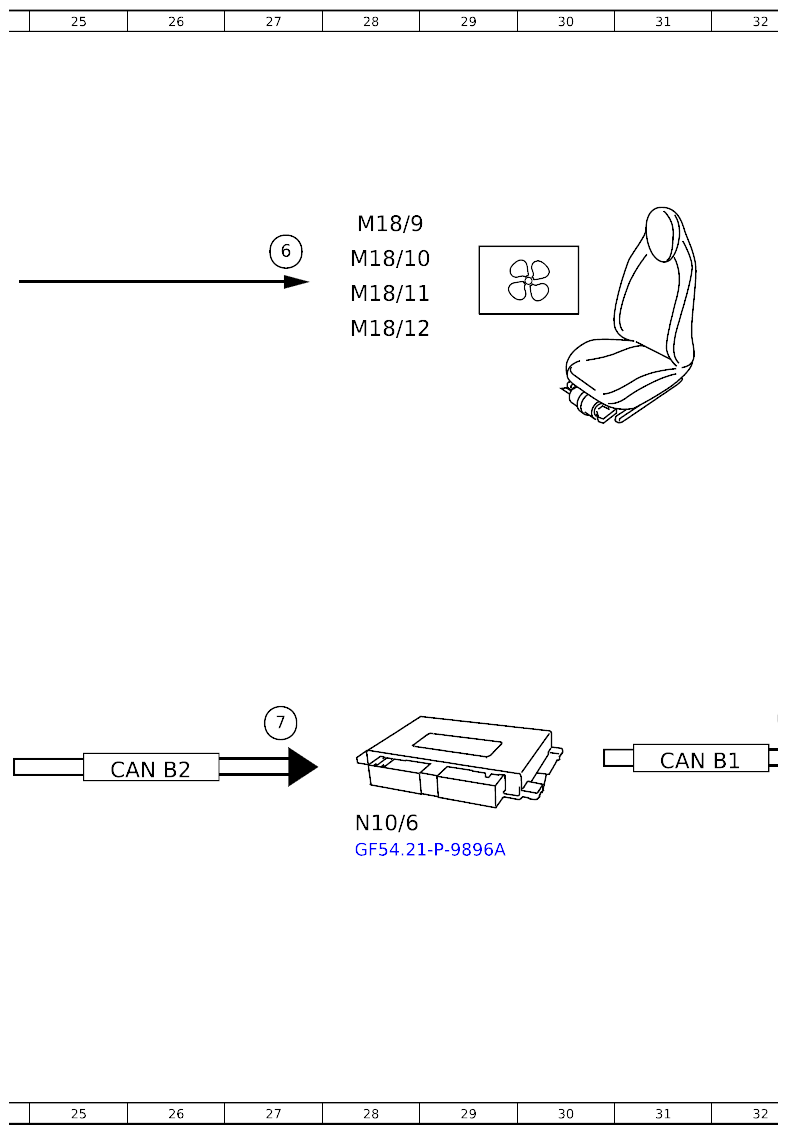

| M18/10 | Left front seat backrest seat ventilation motors | 28C |
| M18/11 | Right front seat cushion seat ventilation motors | 28C |
| M18/12 | Right front seat backrest seat ventilation motors | 28D |
| M18/9 | Left front seat cushion seat ventilation motors | 28C |
| N10/6 | Front signal acquisition and actuation module control unit | 16F |
| N10/6 | Front signal acquisition and actuation module control unit | 28J |
| N2/5 | Supplemental restraint system control unit | 1K |
| N30/10 | Electronic Stability Program control unit | 2J |
| N30/3 | Electronic Stability Program control unit | 2H |
| N32/1 | Driver seat control unit | 22F |
| N32/2 | Front passenger seat control unit | 22G |

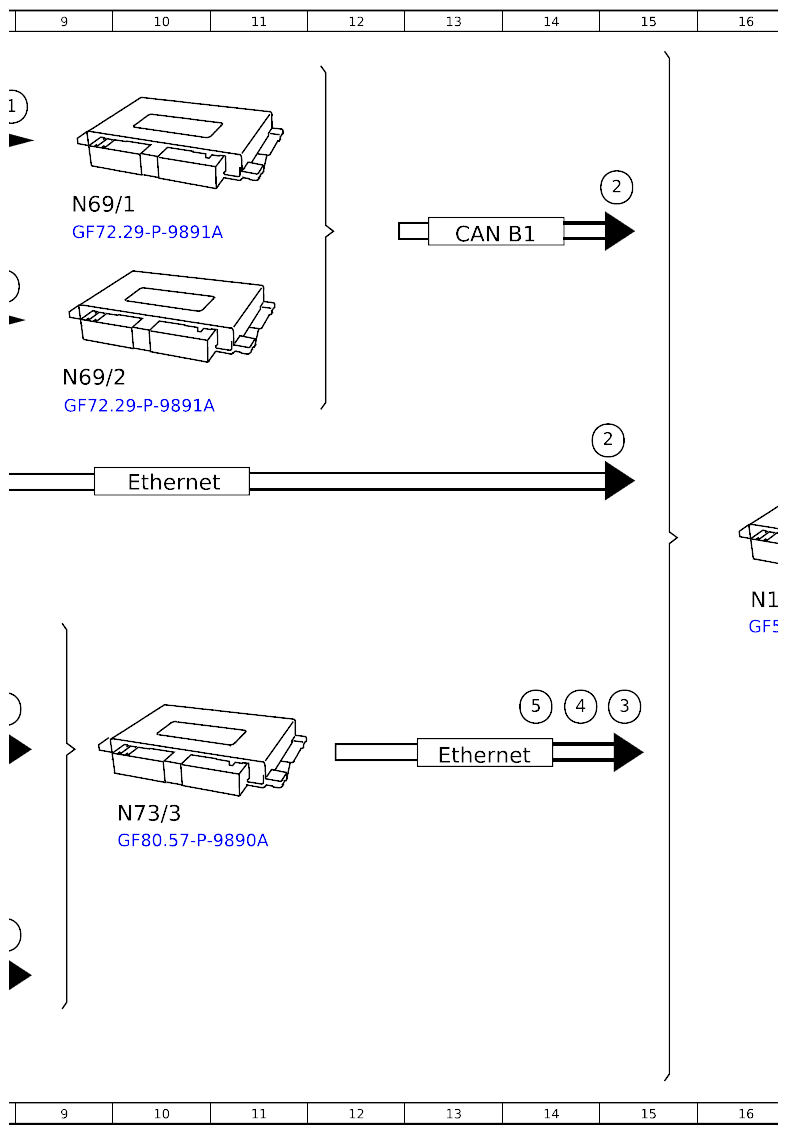

| N69/1 | Left front door control unit | 9B |

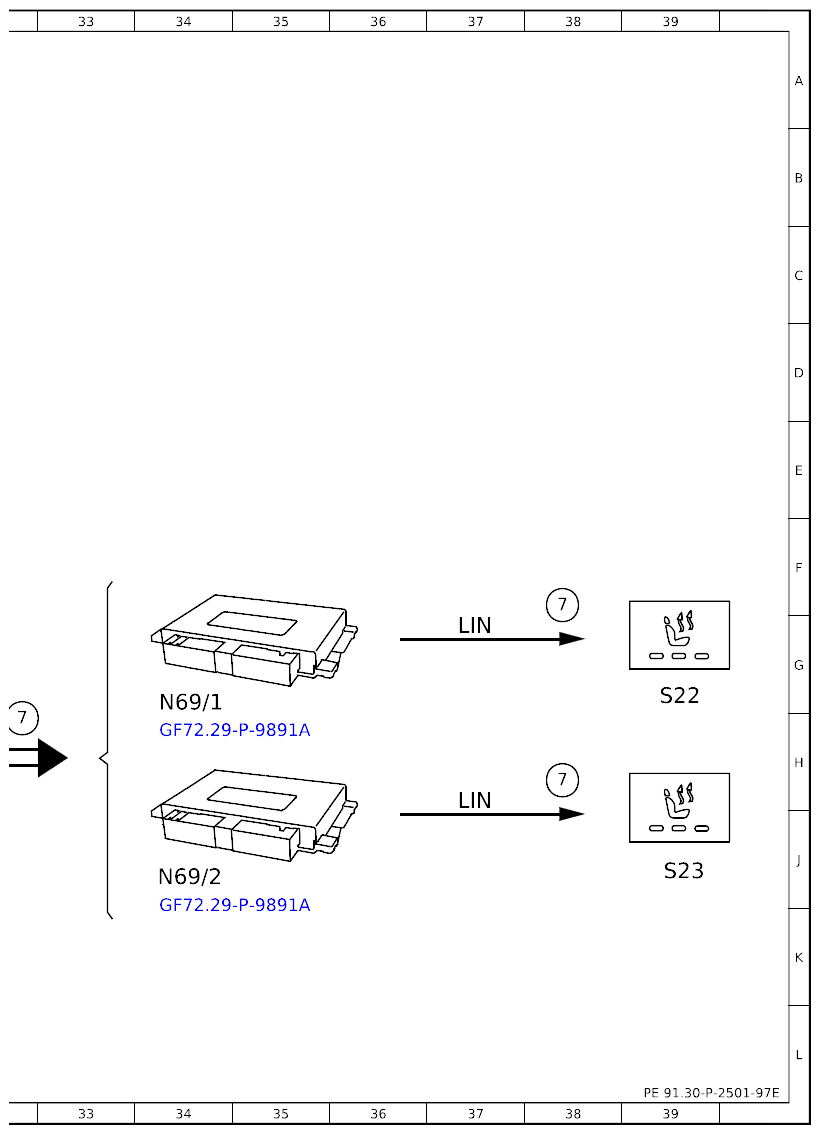

| N69/1 | Left front door control unit | 34G |
| N69/2 | Right front door control unit | 9D |
| N69/2 | Right front door control unit | 34J |
| N73/3 | Electronic ignition switch control unit | 10J |

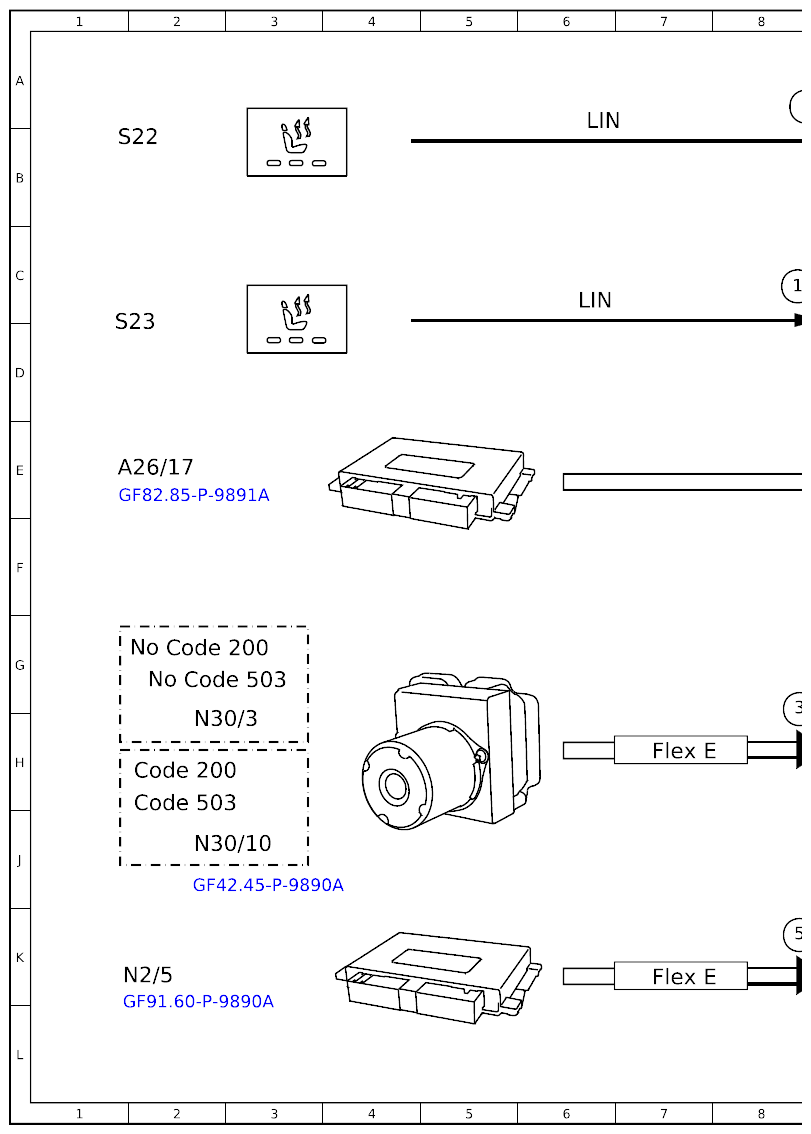

| S22 | Left front seat adjustment switch group | 1B |
| S22 | Left front seat adjustment switch group | 39G |
| S23 | Right front seat adjustment switch group | 1D |
| S23 | Right front seat adjustment switch group | 39J |
